Short Description:

The Mobile data terminal computer is customized ABS material accompanying with IP64 rating, which offer a 360° protection to prevent from dust and water; All interfaces are equiped with protective components to cope with complex industrial environment.The processor for the tablet pc is NXP i.MX6DualLite / i.MX6Qua, an architecture based on ARM Cortex A9 800-1000MHz speed with a high-performance CPU, which is stable and reliable. Also the rugged tablet pc has rich resource working with Android, Windows CE or Linux OS to apply in different fields, eg. Fleet management, large warehouse management, agriculture & construction vehicle, manufacturing, retail, portable medical device, Human-machine interface, intelligent industrial control system, electric power industry, catering and entertainment, port terminal, container freight, etc.


  • Model: PC-7106
  • Resolution : 800×480
  • OS : Android 5.1.1 / Linux Debian 8.0 / WinCE 7.0
  • RAM/ROM: ROM: 8GB Flash, RAM: LPDDR3 1GB (optional: ROM 16GB, RAM 2GB)
  • Interface: Micro SD card slot, SIM card slot, USB OTG ×1, Earphone jack, DC power input, RS232×2, CAN BUS
  • CPU: NXP i.MX 6DualLite 800MHz ARM Cortex-A9 processor
  • Product Detail

    Specification

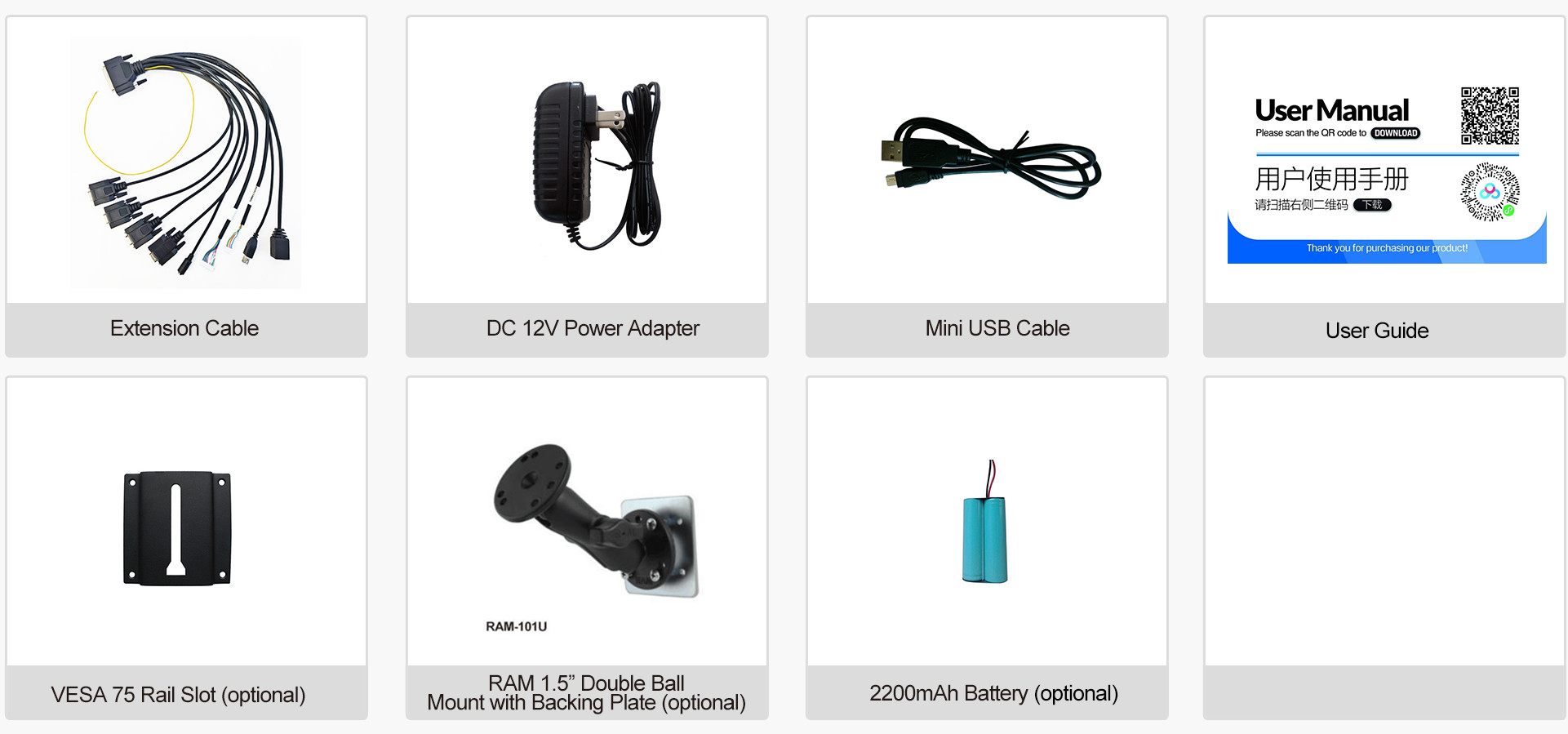

    Accessories

    1

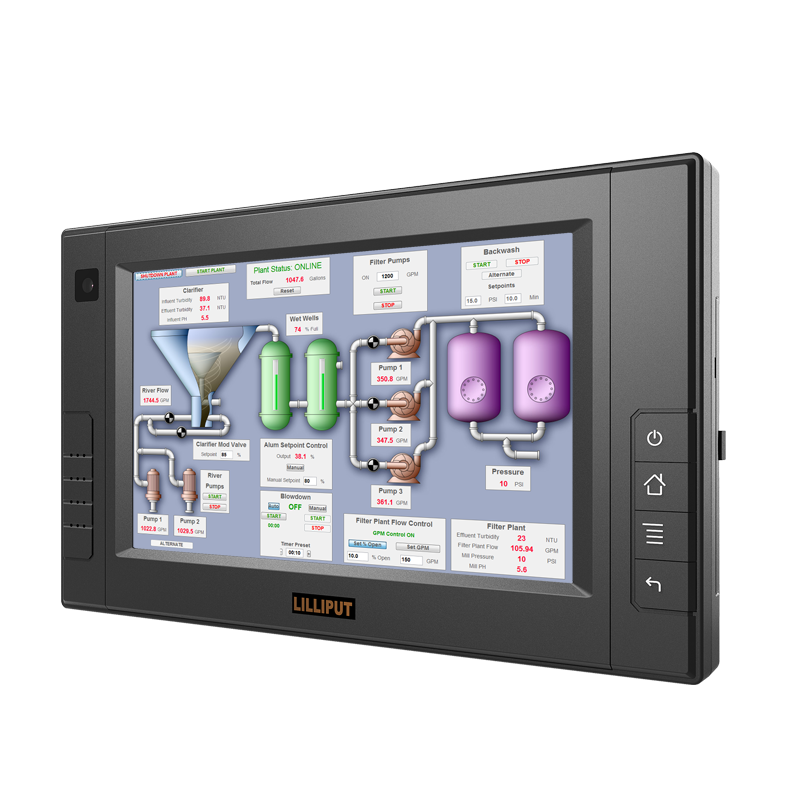

    Mobile Data Terminal

                                CPU: NXP i.MX6DualLite / i.MX6Quad ARM Cortex-A9 processor           RAM: 1G DDR3, flash ROM: 8G eMMC

                                OS: Android 5.1.1, Linux Debian 8.0, WinCE 7.0                                      Multipoint capacitive touch screen

                                Comply with IP64 standard, dust & water-proof                                         9-36V wide power voltage

                                USB host 2.0×1, USB device 2.0×1                                                           Wi-Fi, bluetooth, 3G/4G, ACC & GPS for optional

                                Gpio input×4 Gpio output×6, CAN Bus×2                                                  RS232×4 / RS232×3+RS485×1 / RS232×2+RS422×1+RS485×1



    2

    IP64 Rating

    It features customized ABS material accompanying with IP64 rating, which offer a 360° protection to prevent from dust and water;

    All interfaces are equiped with protective components to cope with complex industrial environment.

    3

    Application Industries

    Rich resource working with Android, Windows CE or Linux OS to apply in different fields, eg. Fleet management, large warehouse management, agriculture & construction vehicle, manufacturing, retail, portable medical device, Human-machine interface, intelligent industrial control system, electric power industry, catering and entertainment, port terminal, container freight, etc.

    4
    5

  • Previous:
  • Next:

  • Display
    Model No. PC-7106
    Touch Panel Capacitive
    Display 7″IPS
    Resolution 800*480
    Aspect Ratio 16:10
    Brightness 450cd/m2
    Contrast 500:1
    Viewing Angle 140° / 120° (H/V)
    Power / Other
    Power Supply DC 10-36V
    Battery Bulit-in 2200mAh
    Dimension 220x132x36.5mm
    Weight 740g
    System
    CPU Freescale I.MX 6DualLite 800MHz
    RAM 1G DDR3
    ROM 8G Flash
    GPU 3D Vivante GC880 35Mtri/s 266Mpxl/s Open GL ES2.0
    OS Android/Linux Debian/WinCE
    Interface
    SIM SIM Slot
    TF Micro SD Card Slot
    USB USB Device 2.0,USB host 2.0×2
    Ear Jack Earphone Jack
    DC Power DC Power Input
    RS232 x4
    RS422 Optional
    RS485 Optional
    LAN 1000M Lan Ethernet
    GPIO Input x 4 ,output x 6
    Function
    CAN Standard
    3G/4G Optional
    WIFI Optional
    Bluetooth Optional
    GPS Optional
    ACC Optional
    NFC Optional

    PC-7106
