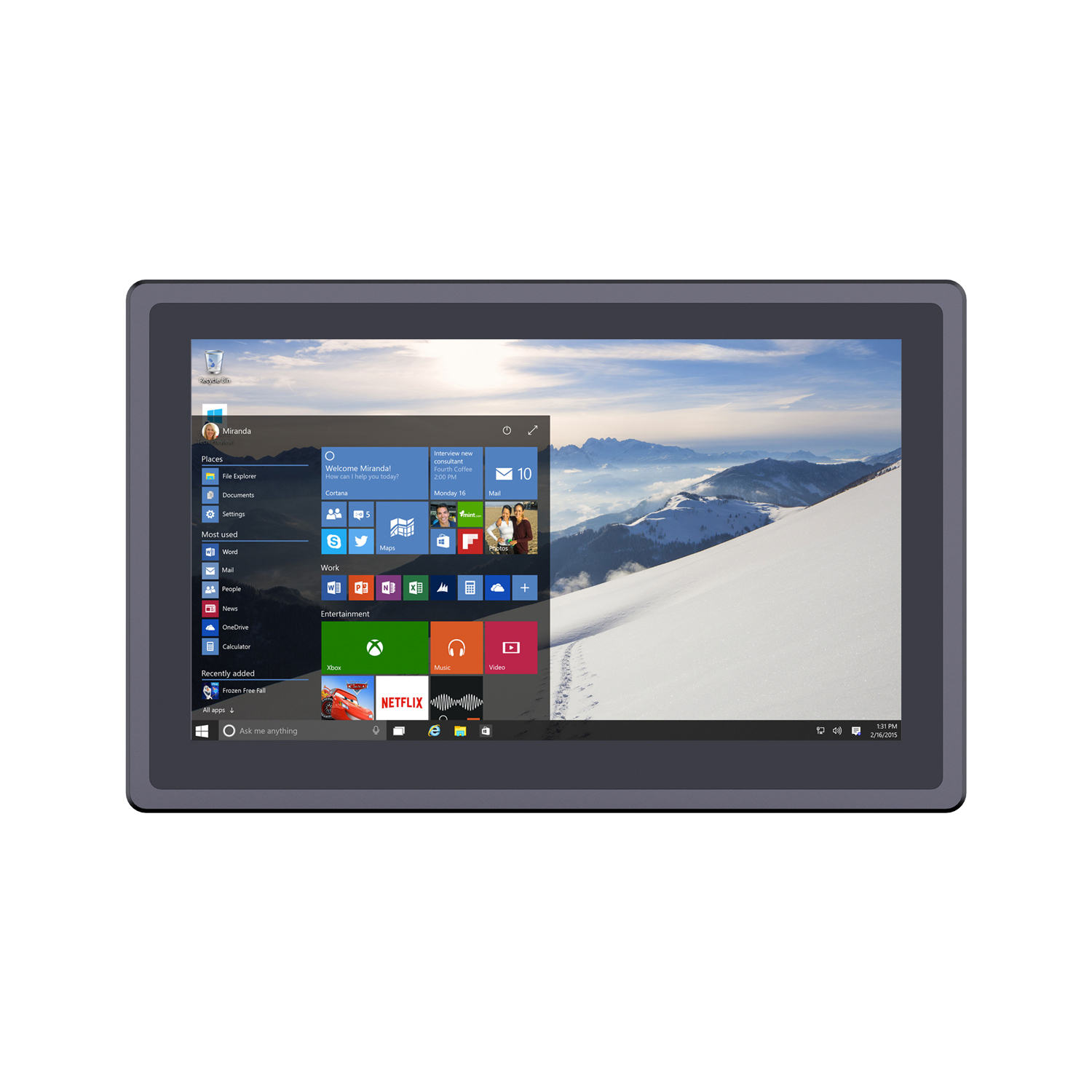

15.6 inch touch screen monitor

Short Description:

The monitor comes with a 10-point touch screen and 1000nits high brightness screen panel. The interfaces support a wide range of customisation options in addition to the existing types such as HDMI, VGA, AV, etc. Its IP64 front panel design is a great convenience for installation methods and applications.

  • Model No.: TK1560/T
  • Display: 15.6" / 1920×1080 / 1000 nits
  • Input: HDMI, AV, VGA,Audio
  • Audio In/Out: Speaker, HDMI, Ear Jack
  • Feature: 1000nits brightness, 10-points touch, IP64, Metal Housing,Auto Dimming
  • Product Detail



    TK1560 DM
    TK1560 DM
    TK1560 DM
    TK1560 DM
    TK1560 DM

  • Previous:
  • Next:

  • DISPLAY Touch Screen 10-point capacitive touch (no touch available)
    Panel 15.6” LCD
    Physical Resolution 1920×1080
    Aspect Ratio 16:9
    Brightness 1000 nits
    Contrast 1000:1
    Viewing Angle 160° / 160° (H/V)
    INPUT HDMI 1 × HDMI 1.4b
    VGA 1
    AV 1
    HDMI 2160p 24/25/30, 1080p 24/25/30/50/60
    1080i 50/60, 720p 50/60…
    AUDIO IN/OUT Speaker 2
    HDMI 2ch
    Ear Jack 3.5mm – 2ch 48kHz 24-bit
    POWER Input Voltage DC 12-24V
    Power Consumption ≤24.5W (15V)
    ENVIRONMENT Operating Temperature -20°C~60°C
    Storage Temperature -30°C~70°C
    Water-proof IP x4 front panel
    Dust-proof IP 6x front panel
    DIMENSION Dimension(LWD) 408mm × 259mm × 36.5mm
    VESA Mount 75mm / 100mm
    Weight 2.9kg
