9.7 inch USB Monitor

Short Description:

Providing additional images for the limitation of single screen size, as well as enhancing the entertainment sensory experience at anytime and anywhere.


  • Model: UM-900/C/T
  • Touch panel: 4-wire resistive (5-wire for optional)
  • Display: 9.7 inch, 1024×768, 400nit
  • Interfaces: USB, HDMI
  • Product Detail

    Specifications

    Accessories

    The Lilliput UM-900 is a 9.7 inch 4:3 touch screen monitor with USB and HDMI input. Tested for optimal performance with Apple products.

    Note: UM-900(without touch function)
               UM-900/T(with touch function)

    High resolution 10 inch monitor

    Natively high resolution 9.7″ monitor

    Natively 1024×768 pixels, UM-900 provides a crystal-clear picture. With USB display technology, every pixel perfectly fits on the display.

    9 inch touch screen monitor

    600:1 contrast

    Thanks to advanced IPS display technology, colours look their best on UM-900. With a 600:1 contrast ratio, your video content looks at its best.

    9 inch monitor with high contrast

    178° viewing angles

    A further benefit of IPS displays is wider viewing angles. UM-900 features the widest viewing angle of all Lilliput USB monitors.

    Wider viewing angles are particularly useful in point-of-sale applications and digital signage because your content maintains its clarity at all angles.

    9 inch monitor with simple borders

    Clean borders

    Many customers request a monitor with clean borders and no front-facing buttons. UM-900 has the cleanest face of any Lilliput monitor, which allows viewers to focus purely on the content.

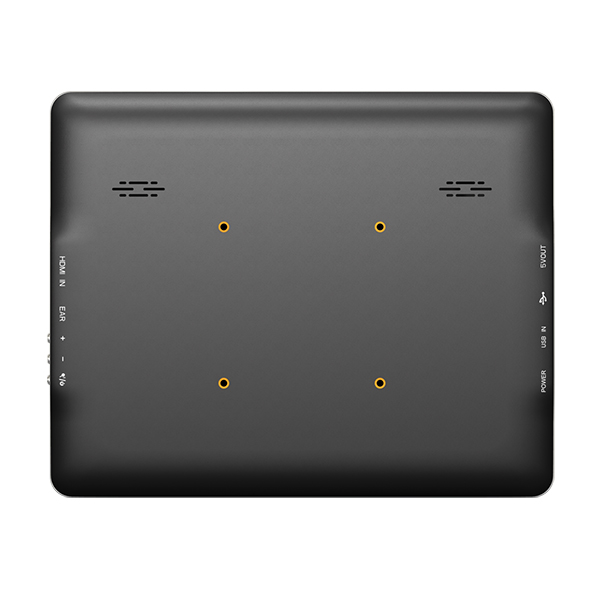

    VESA 75 mount

    VESA 75 mounting

    UM-900 has been designed with AV integrators and digital signage applications in mind. The industry standard VESA 75 mount opens up a world of possibilities,

    but the included desktop stand also allows the UM-900 to be used as a regular desktop companion.

    9 inch USB monitor

    USB video input

    USB video has helped thousands of Lilliput customers around the world: it is convenient and easy to set up.

    UM-900 uses a mini-USB video input, and features one additional regular USB port that acts as a hub.


  • Previous:
  • Next:

  • Display
    Touch panel 4-wire resistive (5-wire for optional)
    Size 9.7”
    Resolution 1024 x 768
    Brightness 400cd/m²
    Aspect ratio 4:3
    Contrast 600:1
    Viewing Angle 178°/178°(H/V)
    Video Input
    Mini USB 1
    HDMI 1×HDMI 1.4
    Supported In Formats
    HDMI 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60
    Audio Out
    Ear Jack 3.5mm - 2ch 48kHz 24-bit (under HDMI mode)
    Built-in Speakers 2 (under HDMI mode)
    Power
    Operating power ≤11W
    DC In DC 5V
    Environment
    Operating Temperature -20℃~60℃
    Storage Temperature -30℃~70℃
    Other
    Dimension(LWD) 242×195×15 mm
    Weight 675g / 1175g (with bracket)

    900T accessories
