China 7 Inch Touch Screen High Brightness Panel PC Manufacturer and Supplier

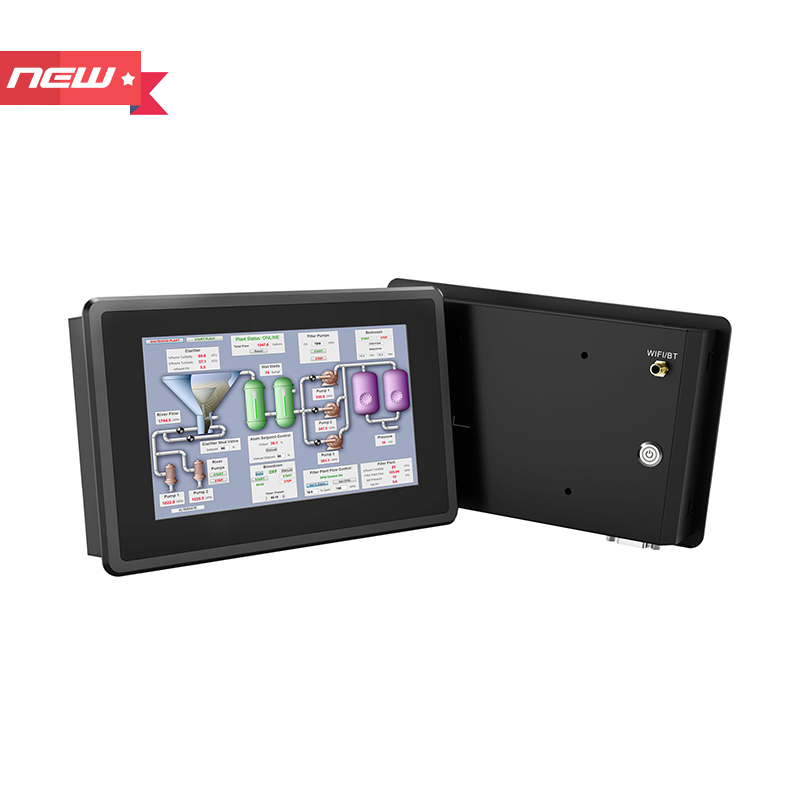

7 Inch Touch Screen High Brightness Panel PC Featured Image

Short Description:

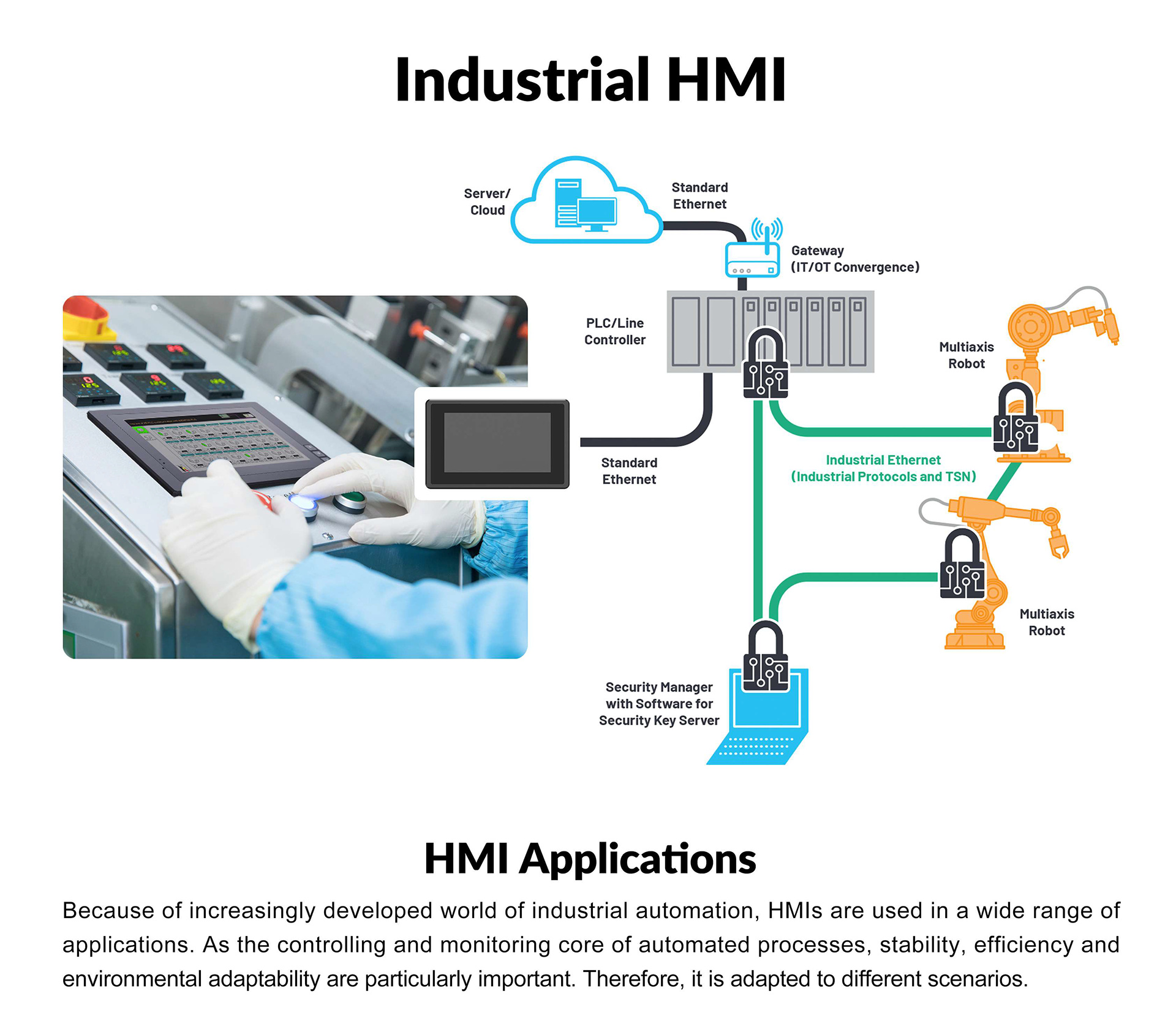

Lilliput 7 inch high brightness touch panel PC has a stable and reliable system, and the panel PC with rich interfaces, such as Wireless / BT communication and flexible I/O interfaces to meet different application area needed ,such as personal entertainment, emergency command, transportation scheduling, mobile office, multimedia advertising, industrial control and so on.

Model: PC-703

Resolution : 800x480

OS (optional): Linux/Windows 10

CPU: Intel J1900,2.0GHz quad-core provessor

RAM/ROM: 4GB (Support up to 8GB) / 120GB (Support up to 1TB)

Interface: LAN, HDMI Output, VGA Output,RS232/RS485,USB,Audio Output

Send email to us Download as PDF User guide

Product Detail

Specification

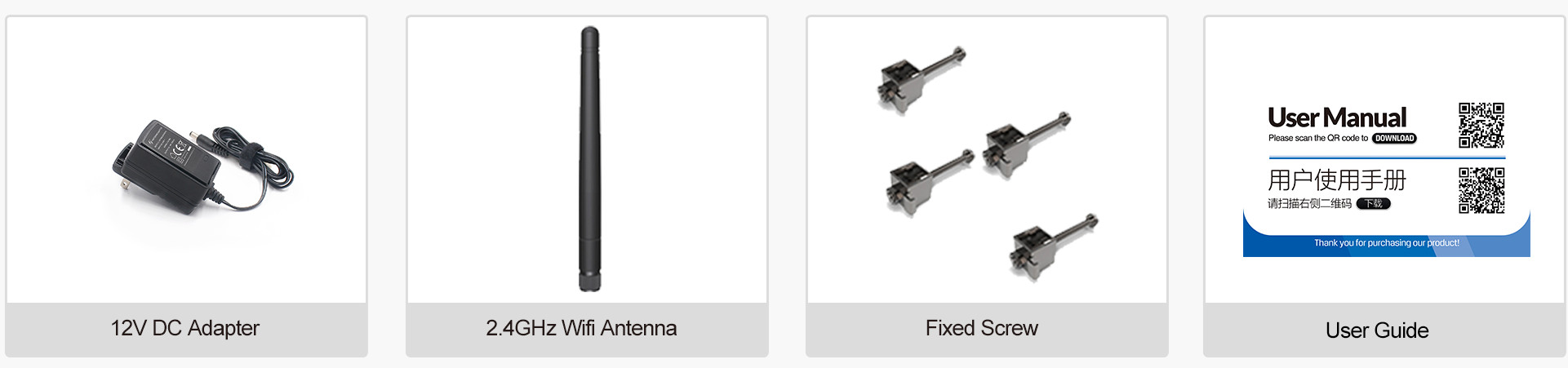

Accessories

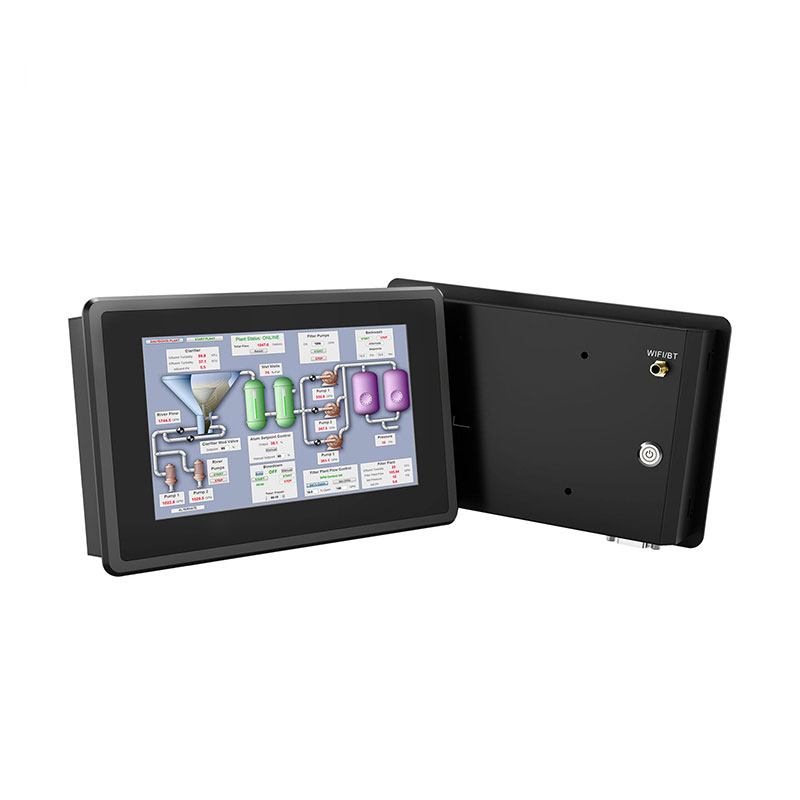

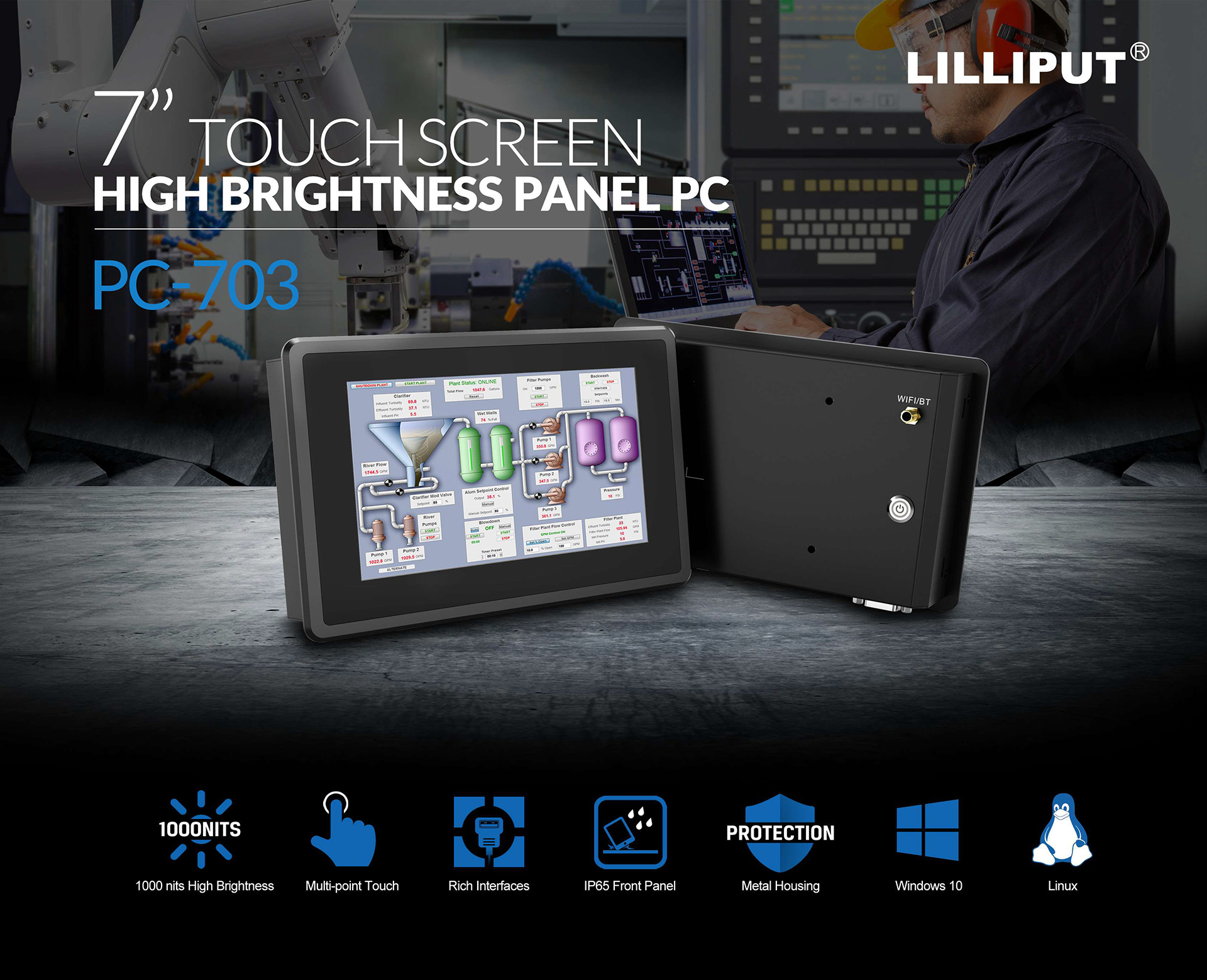

7 Inch Touch Screen High Brightness Panel PC 1

7 Inch Touch Screen High Brightness Panel PC 2

7 Inch Touch Screen High Brightness Panel PC 3

7 Inch Touch Screen High Brightness Panel PC 4

7 Inch Touch Screen High Brightness Panel PC 5

7 Inch Touch Screen High Brightness Panel PC 6

Previous: 7 inch industrial open frame touch monitor

Next: 8″ Face Recognition Temperature Measurement Terminal

Display
Model No.	PC-703
Touch Panel	Multi-point capacitive touch screen
Display	7″
Resolution	800*480
Brightness	1000cd/m2
Power / Other
Power Supply	DC12V

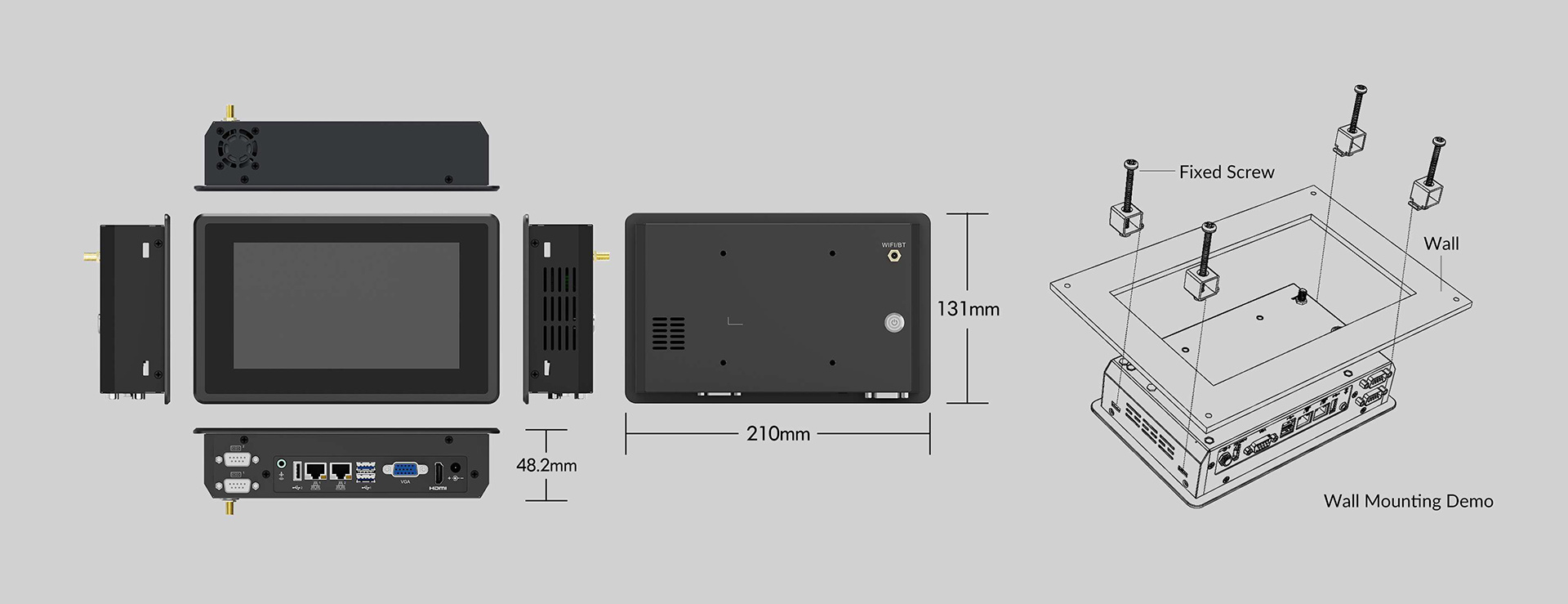

Dimension	210X131X48.2MM
Weight	985G
System
CPU	Intel J1900,2.0GHz quad-core processor
RAM	4GB (8GB is optional)
ROM	120GB (Support up to 1TB)
GPU	Integrated Intel HD Graphics
OS (Optional)	Linux/Winows 10

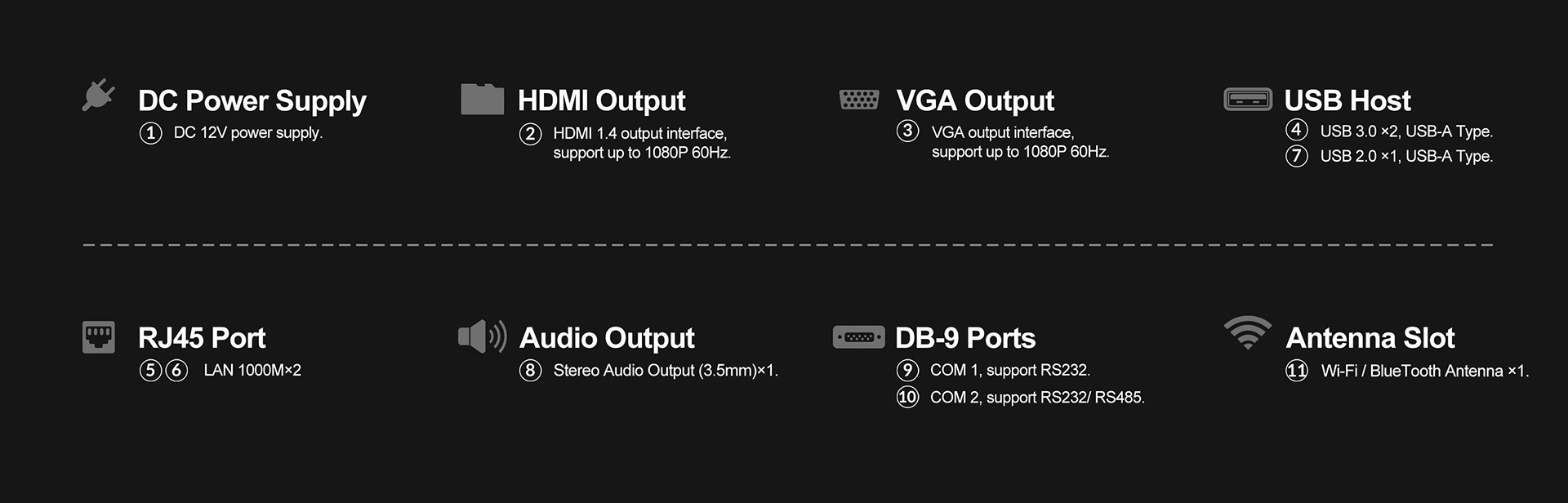

Interface
HDMI Output	x1 ,support up to 1080p 60Hz
USB	USB 3.0 host x 3, USB2.0 host x 1
Audio Output	Audio Output x 1, green port
DC Power	DC power input
COM (DB-9)	COM1 support RS232, COM2 Support RS232/RS485
VGA Output	x1, support up to 1080p 60Hz
LAN	1000M x 2
Function
WIFI	802.11a/b/g/n, 2.4GHz
B/T	2402MHz~2480MHz
