Short Description:

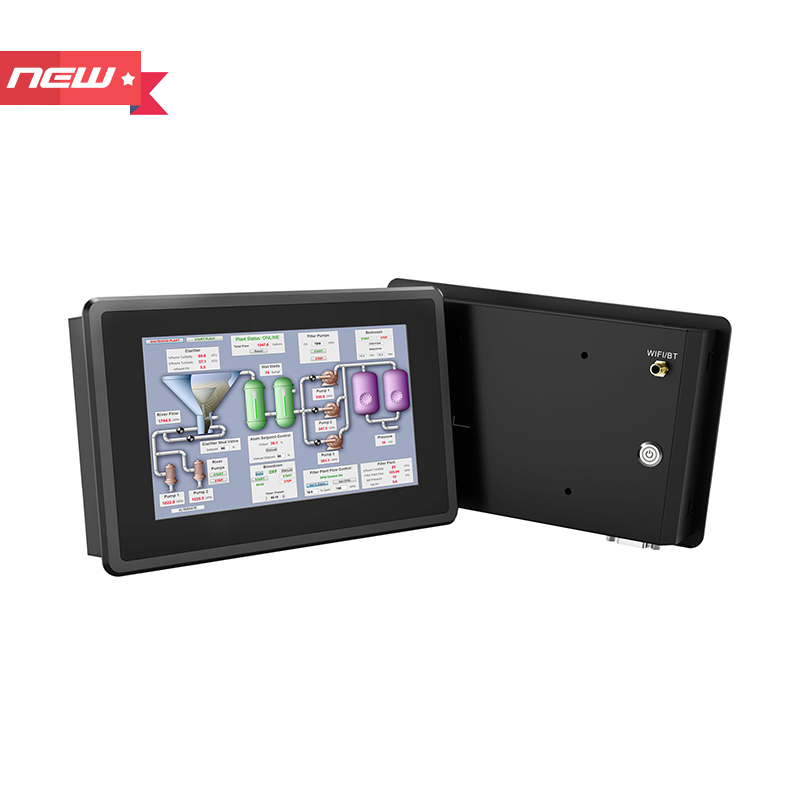

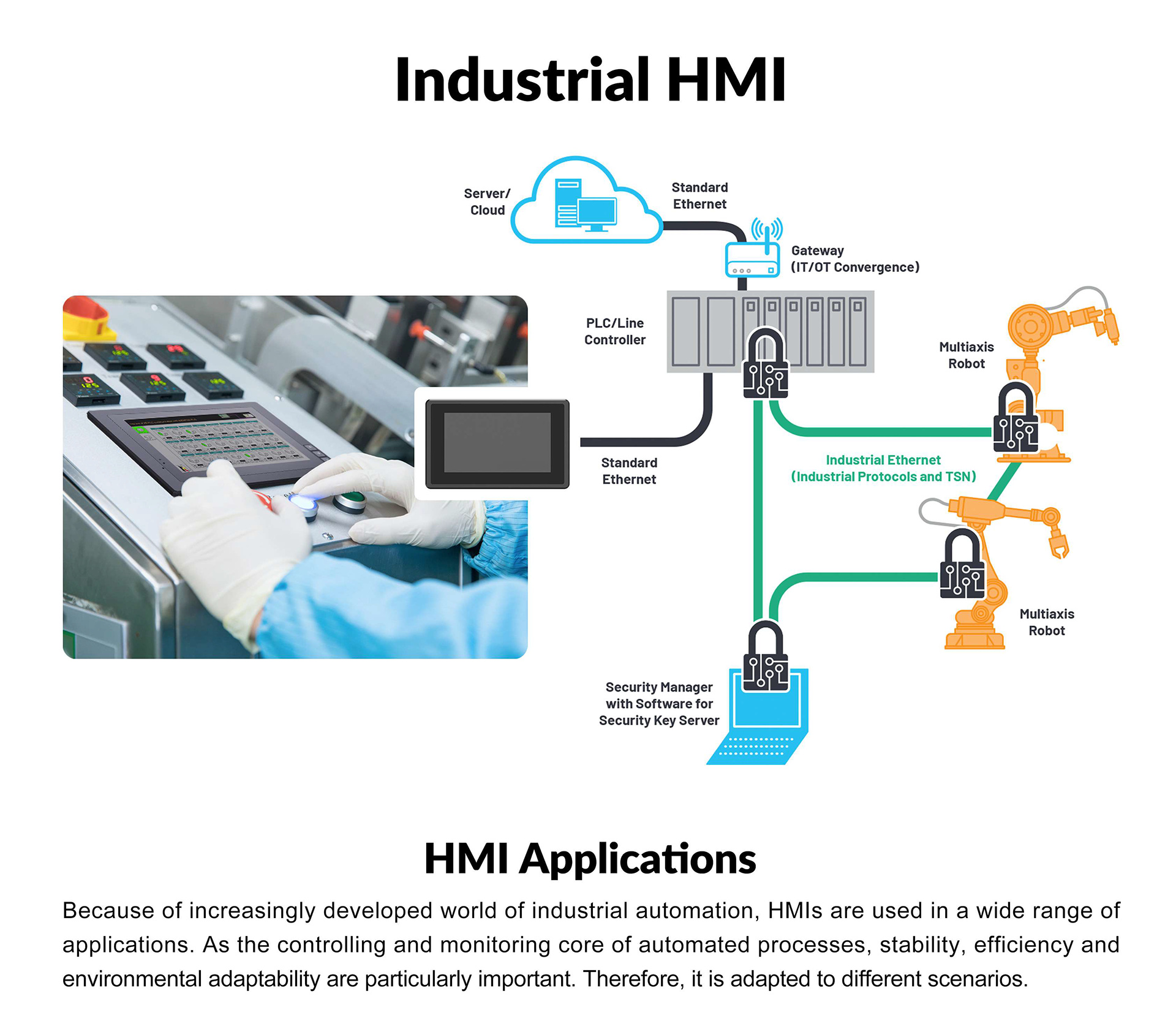

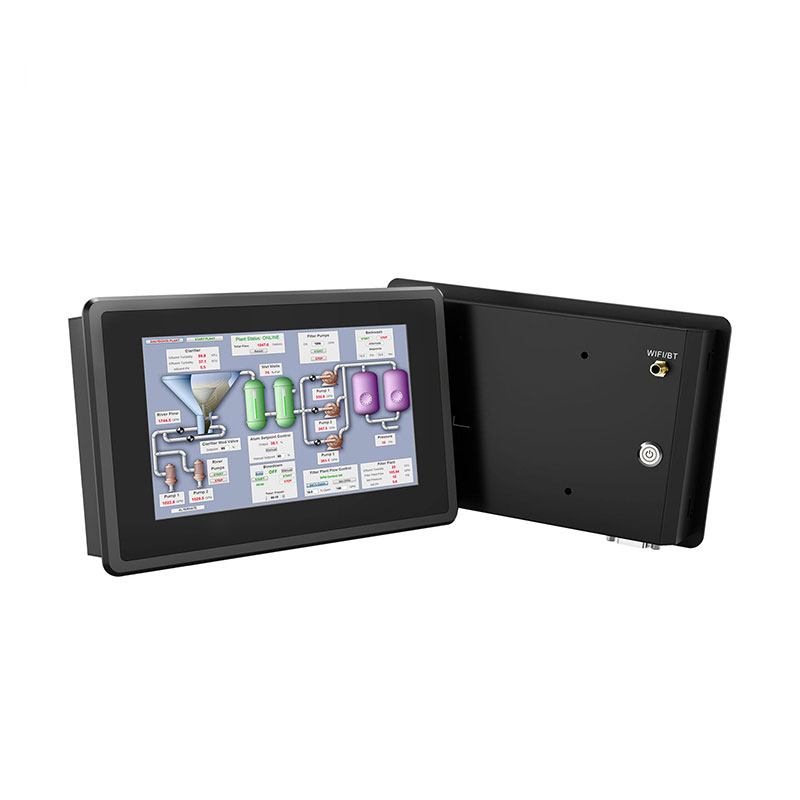

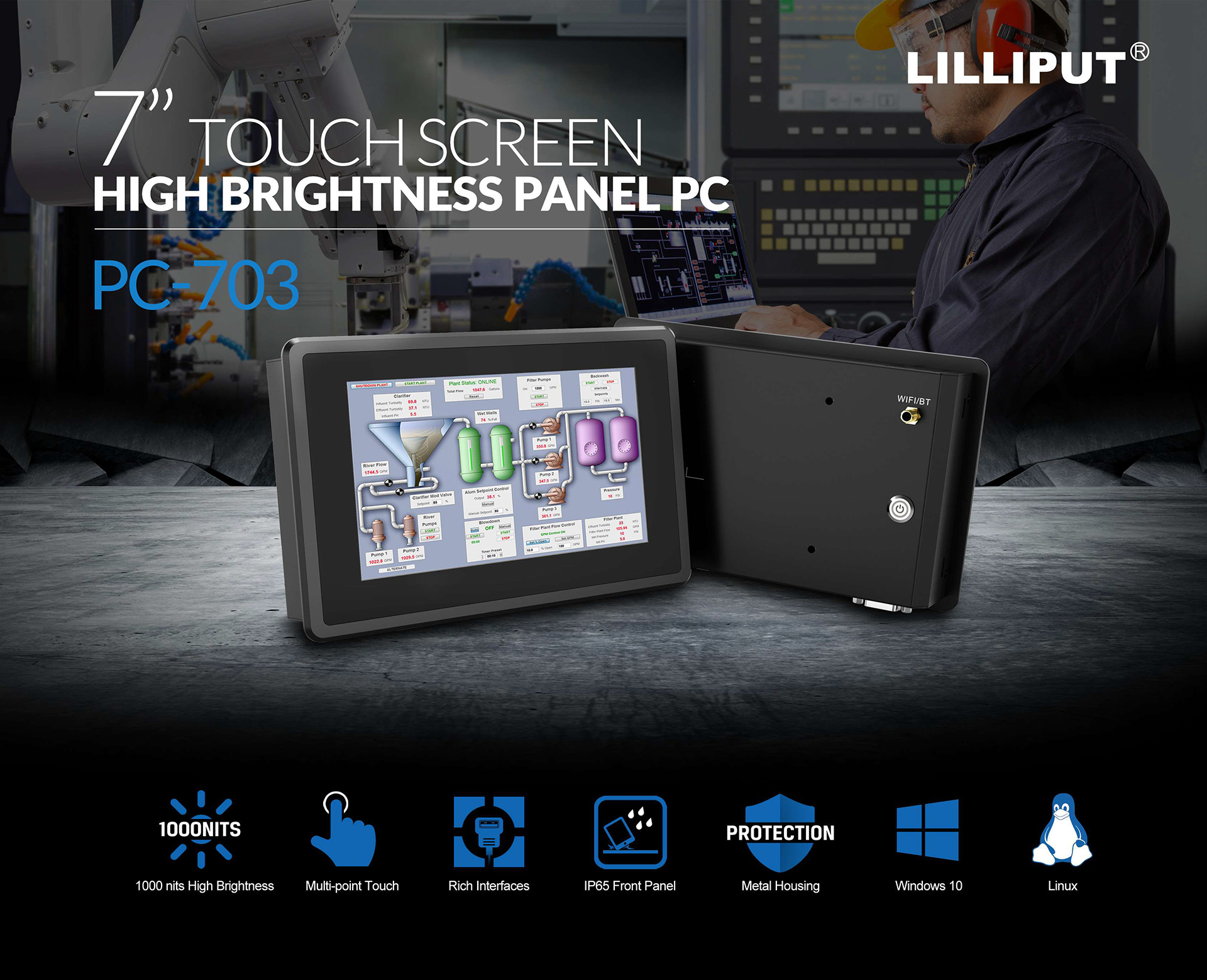

Lilliput 7 inch high brightness touch panel PC has a stable and reliable system, and the panel PC with rich interfaces, such as Wireless / BT communication and flexible I/O interfaces to meet different application area needed ,such as personal entertainment, emergency command, transportation scheduling, mobile office, multimedia advertising, industrial control and so on.

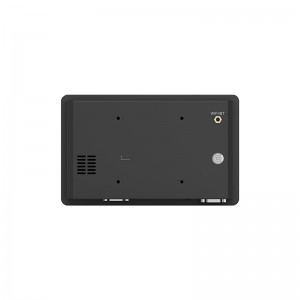

  • Model: PC-703
  • Resolution : 800x480
  • OS (optional): Linux/Winows 10
  • CPU: Intel J1900,2.0GHz quad-core provessor
  • RAM/ROM: 4GB (Support up to 8GB) / 120GB (Support up to 1TB)

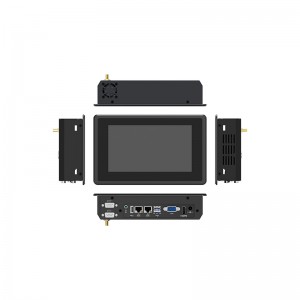

  • Interface: LAN, HDMI Output, VGA Output,RS232/RS485,USB,Audio Output
  • Product Detail



    7 inch touch panel pc
    hmi touch screen panel pc
    7inch touch screen panel pc
    high brightness touch panel pc
    industrial panel pc touch
    7 inch industrial touch panel pc

  • Previous:
  • Next:

  • Display
    Model No. PC-703
    Touch Panel Multi-point capacitive touch screen
    Display 7″
    Resolution 800*480
    Brightness 1000cd/m2
    Power / Other
    Power Supply DC12V

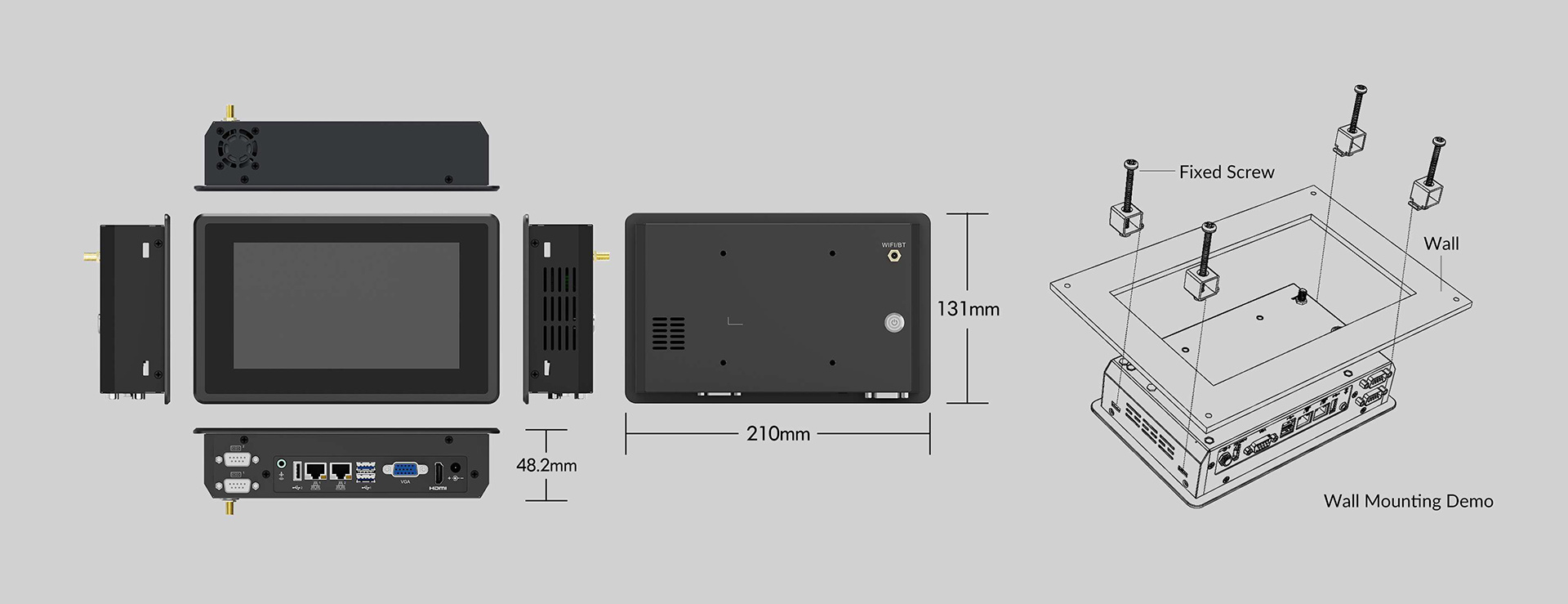

    Dimension 210X131X48.2MM
    Weight 985G
    CPU Intel J1900,2.0GHz quad-core processor
    RAM 4GB (8GB is optional)
    ROM 120GB (Support up to 1TB)
    GPU Integrated Intel HD Graphics
    OS (Optional) Linux/Winows 10

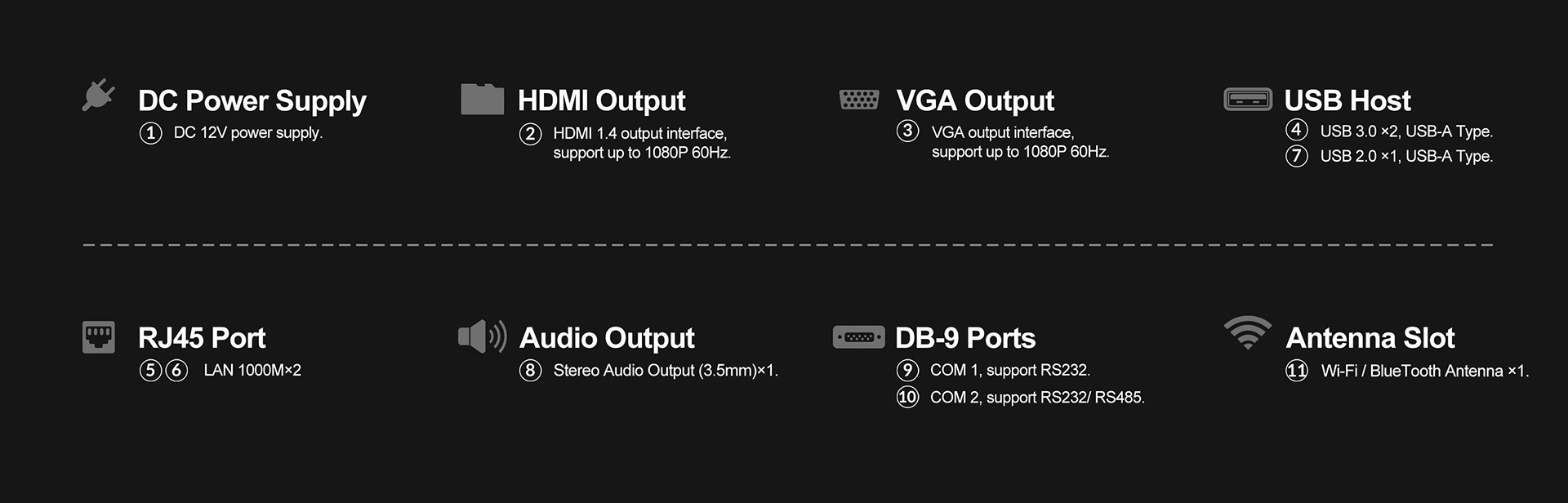

    HDMI Output  x1 ,support up to 1080p 60Hz
    USB USB 3.0 host x 3, USB2.0 host x 1
    Audio Output Audio Output x 1, green port
    DC Power DC power input
    COM (DB-9) COM1 support RS232, COM2 Support RS232/RS485
    VGA Output x1, support up to 1080p 60Hz
    LAN 1000M  x 2
    WIFI  802.11a/b/g/n, 2.4GHz
    B/T 2402MHz~2480MHz

    hmi touch panel pc
