Short Description:

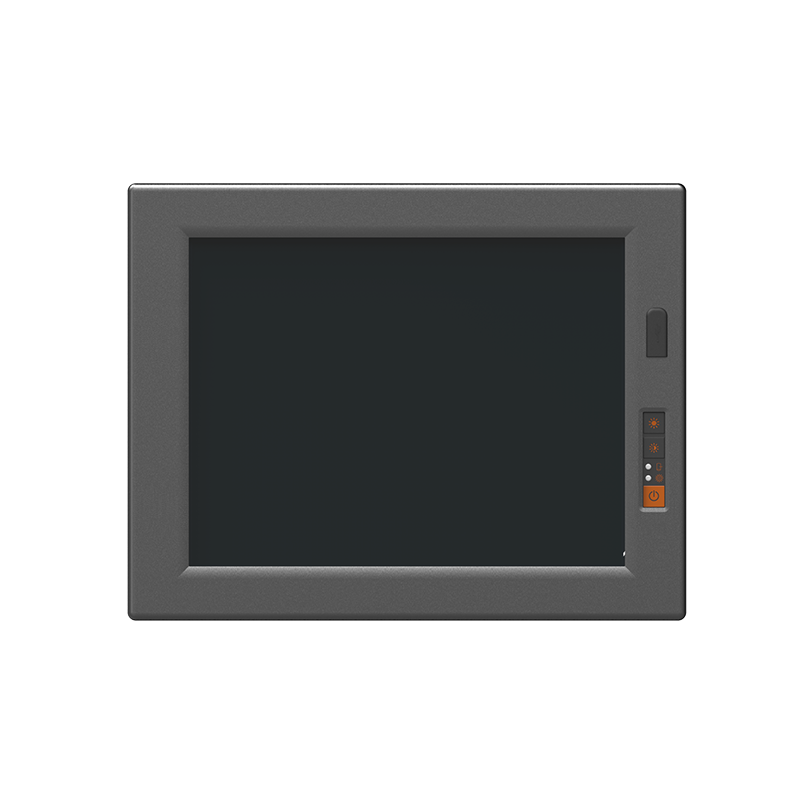

Lilliput 15 inch industrial lcd panel computer with IP65 standard. The screen is protected by special silicone, to prevent from dusts and other bad environment. Aluminum alloy housing with aviation class not only makes the device much firmer, but also makes a better cooling with fanless design, as the working temperature ranges from -10°C to 60°C. Also the embeded panel pc with abundant of interfaces for industrial application. Such as 4×RS232/485 with magnetic lotus root isolation; 5×USB 2.0 high speed transmission ports; Onboard dual 1000Mbps RJ45 interfaces; 12~24V wide voltage input, support ACPI power management; Furthermore, built-in 2.5"SATA slot, mSATA slot and mPCIE slot can be used for extra extension.


  • Model: PC-1501 / PC-1502
  • OS: Windows XP/7/8/10; Linux ;
  • CPU (PC-1501): Intel® Atom D525 Processor (1M cache, 1.80 GHz)
  • CPU (PC-1502): Intel® Core i5-430UM Processor (3M cache, 1.20 GHz)
  • RAM: 2G DDR3(PC-1501); 4G DDR3(PC-1502)
  • Storage: 32G SSD mSATA, optional up to 256G
  • Product Detail

    Specification

    Accessories

    1

                                                                                                 MAIN FEATURES

                                          勾 Aluminum alloy body                                                       勾 15" 1024×768 LCD display

                                          勾 Heat-resistant 5-wire resistive touch screen                   勾  Backlight touch control

                                          勾 Intel Atom D525, 2G RAM(PC-1501);                             勾  Intel Core i5-430UM, 4GRAM(PC-1502)

                                          勾 USB2.0 high speed interface×5                                      勾 Onboard dual 1000Mbps RJ45 interfaces

                                          勾 2.5"SATA slot×1, mSATA slot×1, mPCIE slot×1              勾 4×RS232/485 with coupled magnetic isolation technology

                                          勾 256-level programmable watchdog timer                        勾 12~24V DC input, support ACPI power management

    2

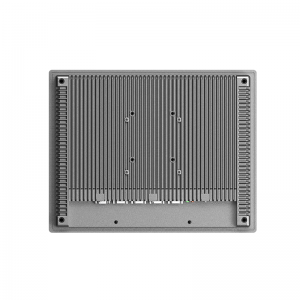

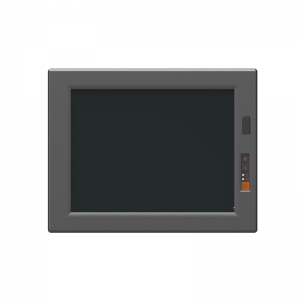

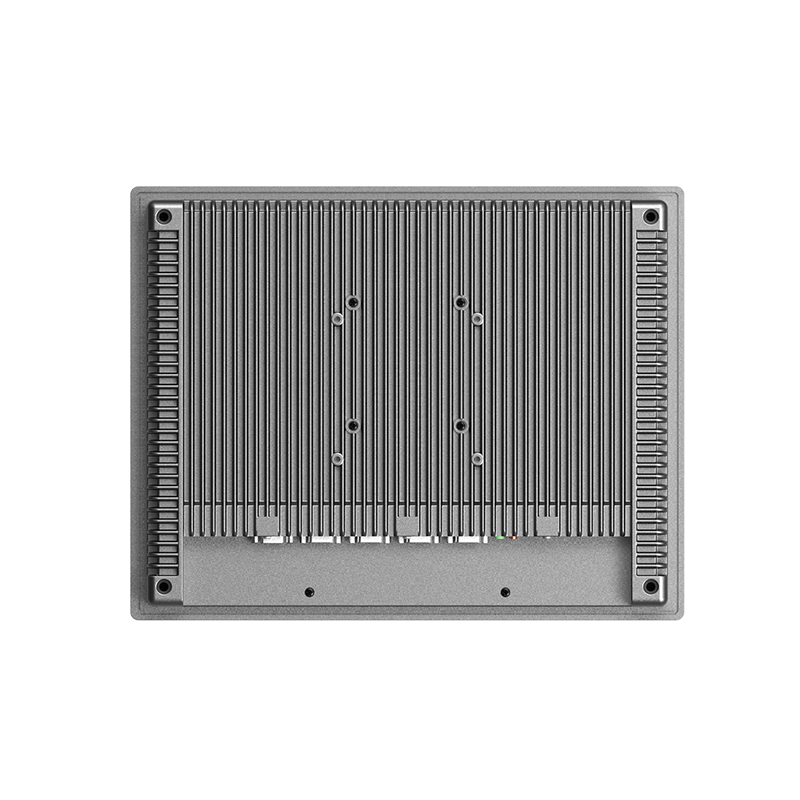

    PERFECT PROTECTION

                                                                     The front panel comply with IP65 standard. The screen is protected by special silicone,

                                                                     to prevent from dusts and other bad environment. Aluminum alloy housing with aviation

                                                                     class not only makes the device much firmer, but also makes  a better cooling with fanless

                                                                                        design, as the working temperature ranges from -10°C to 60°C.

    3

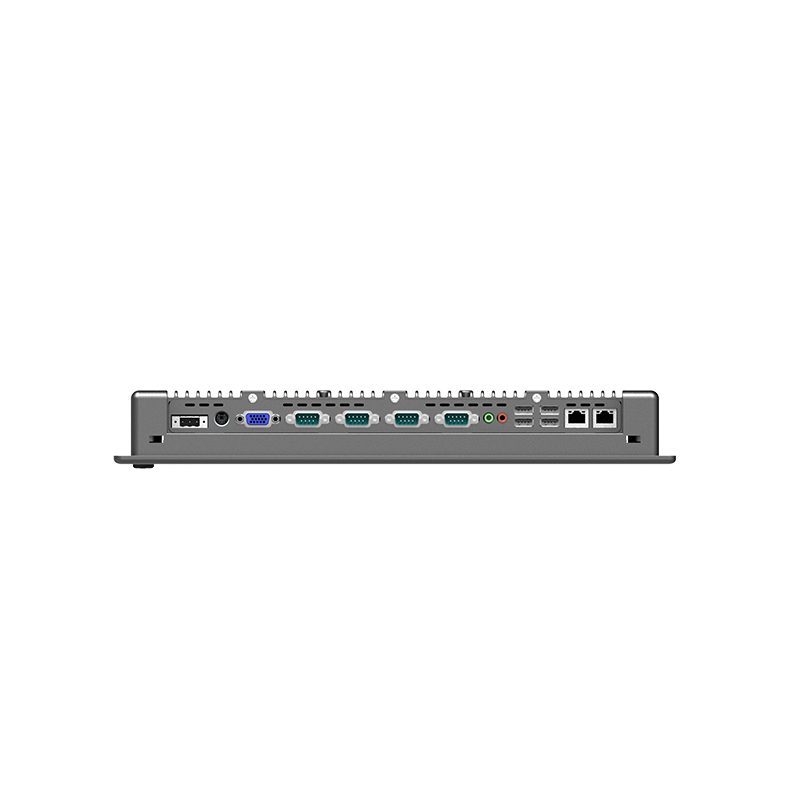

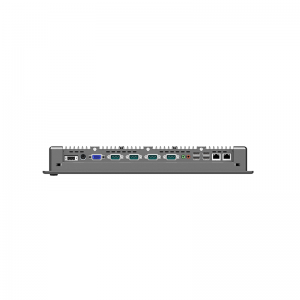

    RICH INTERFACES

    With abundant of interfaces for industrial application. For example, 4×RS232/485 with magnetic lotus root isolation; 5×USB 2.0 high speed transmission ports; Onboard dual 1000Mbps RJ45 interfaces; 12~24V wide voltage input, support ACPI power management; Furthermore, built-in 2.5"SATA slot, mSATA slot and mPCIE slot can be used for extra extension.

    5
    4

  • Previous:
  • Next:

  • Display
    Model NO. PC-1501 / PC-1502
    Touch Panel Heat-resistant 5-wire resistive
    Display 15″
    Resolution 1024*768
    Aspect Ratio  4:3
    Brightness 450cd/m2
    Contrast 700:1
    Viewing Angle 160/140(H/V)
    Power / Others
    Power Supply DC12-24V
    Dimension 396*310*52MM
    Weight 4600g
    System
    CPU Inter Atom 0525 1.80GHz (PC-1501)
    Intel Core i5-430UM 1.20GHz(PC-1502)
    RAM 2GB DDR3(PC-1501) ;4G DDR3(PC-1502)
    ROM 32GB SSD
    GPU Intergrated/intel HD Graphic
    OS Linux/Winows
    Watchdog Timer 256-level programmable
    Interface
    VGA VGA output
    USB USB 2.0X4
    Ear Jack Eerphone Jack
    DC Power DC power input
    RS232 x4
    RS485 Optional
    LAN 1000M & 100M Ethernet x 2
