Rich resource working with powerful Intel CPU processor, which applied in different fields. For instance, Intelligent industrial control system, electric power industry, electronic assembly line, numerical control machine, coal mine acquisition, large warehouse management, manufacturing, retail, medical device, HMI, catering and entertainment, port terminal, shopping mall, etc.
The front panel is designed to carry IP65 degree of protection which offer complete protection against particles, and a good level of protection against water, up to water projected by a nozzle against front panel from any direction.
Selection of high-quality industrial-grade screens on the market, which not only has prominent color representation, but also the high brightness of 1000 nit screen panel makes it suitable for outdoor sunlight conditions.
In addition to the interfaces shown, the engineers have creatively reserved a number of expansion ports on the mainboard that can be uniquely customized for different requests The readily replaceable sheet metal also provides a great deal of ease in modifying the interfaces.
|CPU||Integrated Intel® Celeron J1900 / 2.0GHz quad core processor|
|GPU||Integrated Intel® HD Graphics|
|Operating System||Windows 7 / 10, Linux Ubuntu (optional)|
|RAM||4GB DDR3, up to 8GB|
|Storage||120GB mSATA (SATA2.0 or 2.5 inch HDD optional)|
|LCD||21.5″ FHD (1920 × 1080), 1000cd/m2 higher brightness, Sunlight readable|
|Touchscreen||10 point multi touch capacitive touchscreen supporting glove and rain mode|
|WLAN||IEEE 802.11 a / b / g / n; 2.4GHz|
|Sound||Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out, amplifier|
|2 × Amplifier proposed using 2Ω 5W speakers|
|Expansion||1 × Mini-PCIE|

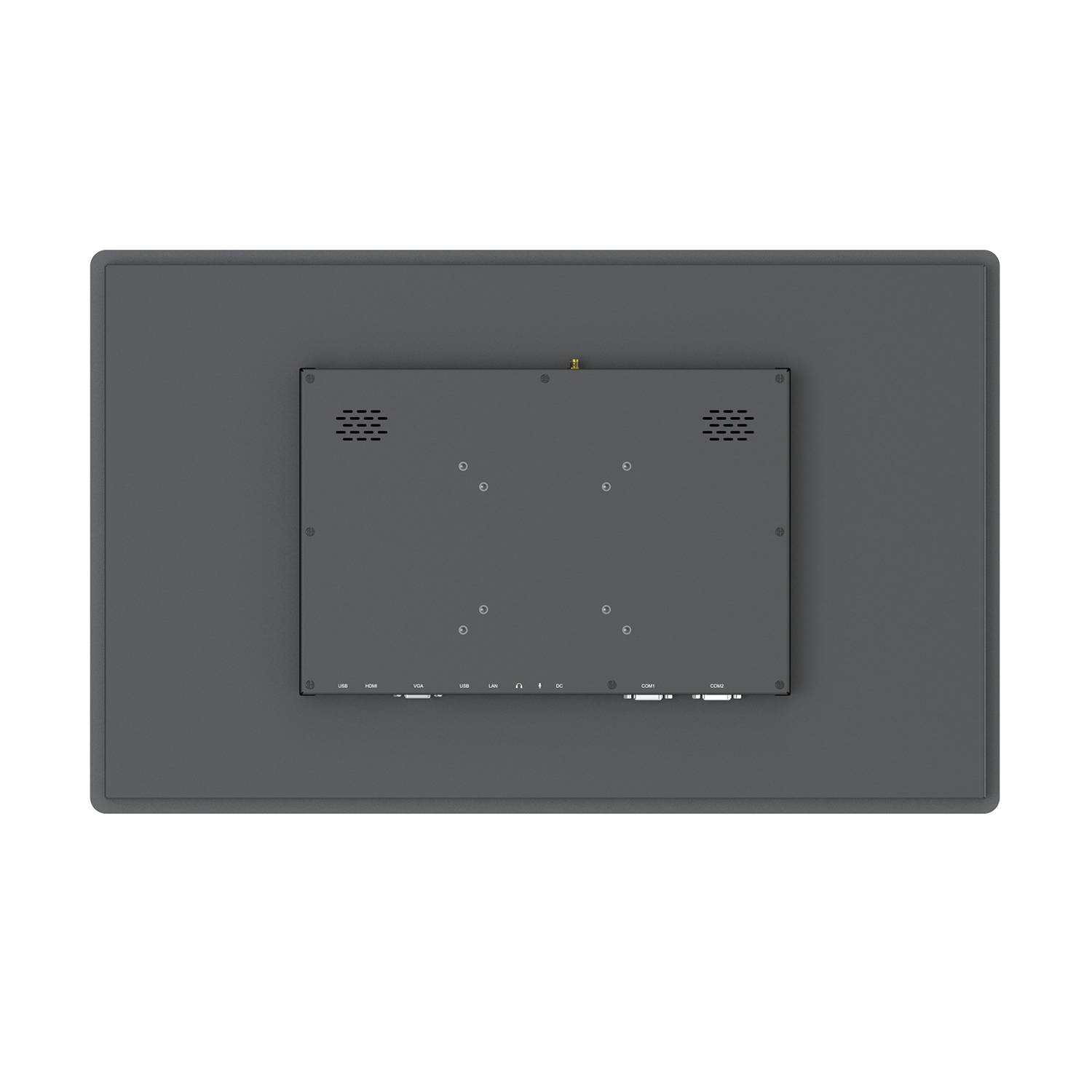

|Interfaces||1 × HDMI|
|1 × VGA|
|3 × USB 2.0|
|1 × USB 3.0|
|1 × LAN|
|2 × RS232 serial ports|
|Watch dog||Windows 7/Windows 10/Linux|
|Power consumption||≤ 40W|
|Physical Dimensions||556 x 344.5 x 53 mm|
|Environment||Dust resistance test: IP6x (front panel)|
|Water resistance test: IPx5 (front panel)|
|Operating temperature: -10°C ~ 55°C (14°F ~ 131°F)|
|Storage temperature: -20°C ~ 70°C (-4°F ~ 158°F)|
