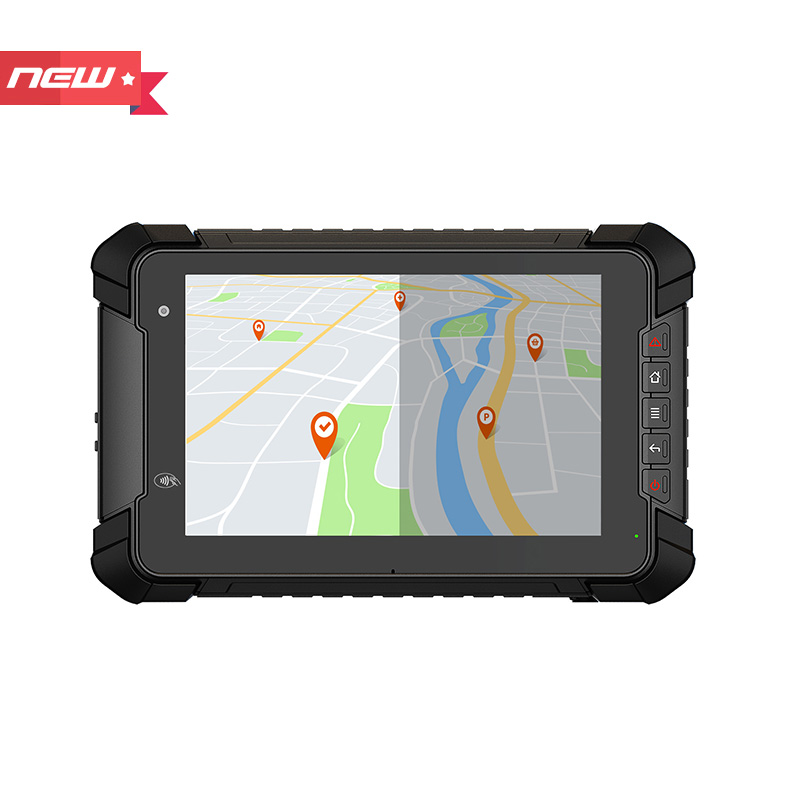

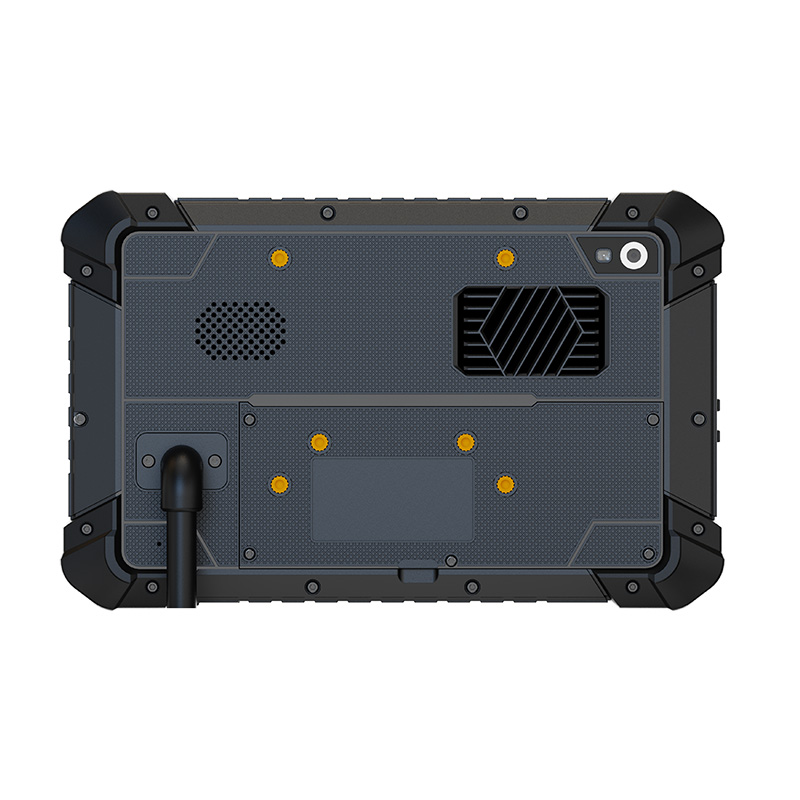

7 Inch IP67 rugged tablet Featured Image

Short Description:

This rugged Tablet combine advanced computing power with 7” hardened displays to provide a modular solution that enables easy customization and simplified upgrading while reducing maintenance costs. It is designed for use in monitoring and controlling processes in industries or fleeting obligated to meet high stability standards.

Model: PC-7108

Resolution : 1280×800

OS : Android 9.0/ Linux Debian 10

RAM/ROM: 2G+16G / 4G+64G (optional)

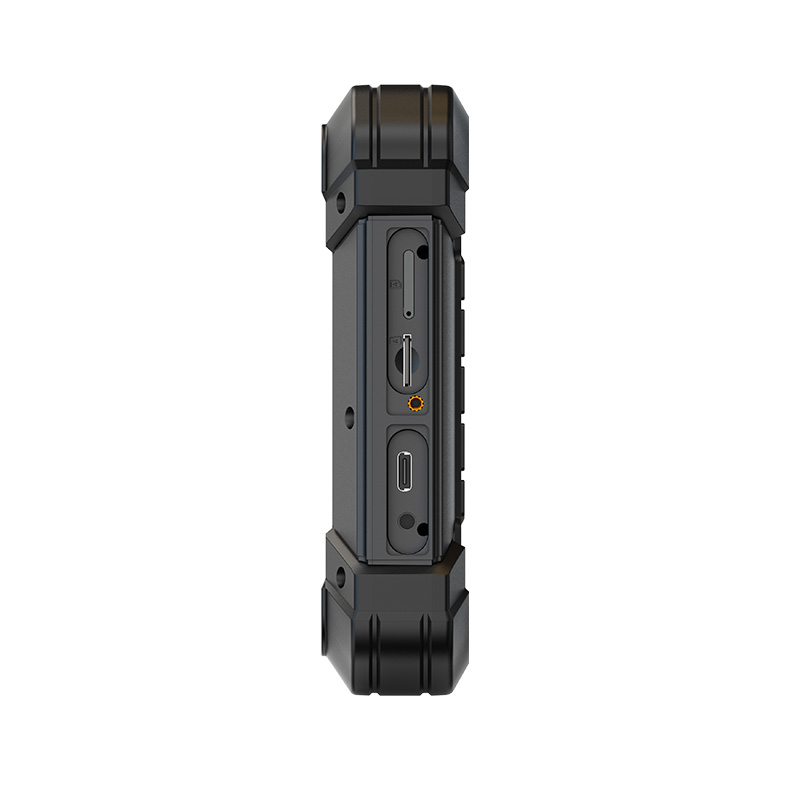

Interface: Micro SD card slot, SIM card slot, USB OTG ×1, Earphone jack, DC power input, RS232×4, CAN BUS

CPU: NXP i. MX 8M Mini, ARM® Cortex®-A53 Quad-Core 1.6GHz processor

Send email to us Download as PDF User guide

Product Detail

Specification

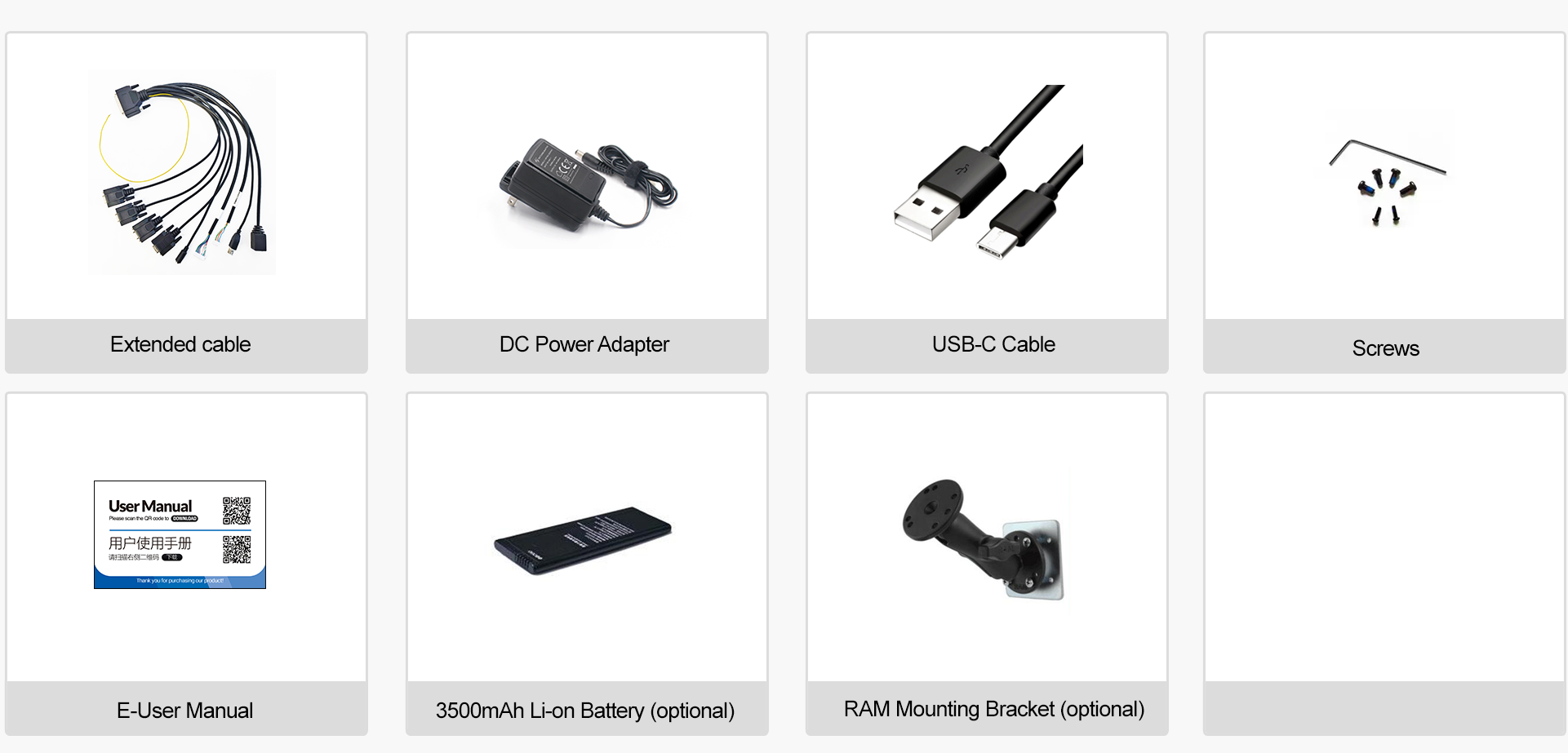

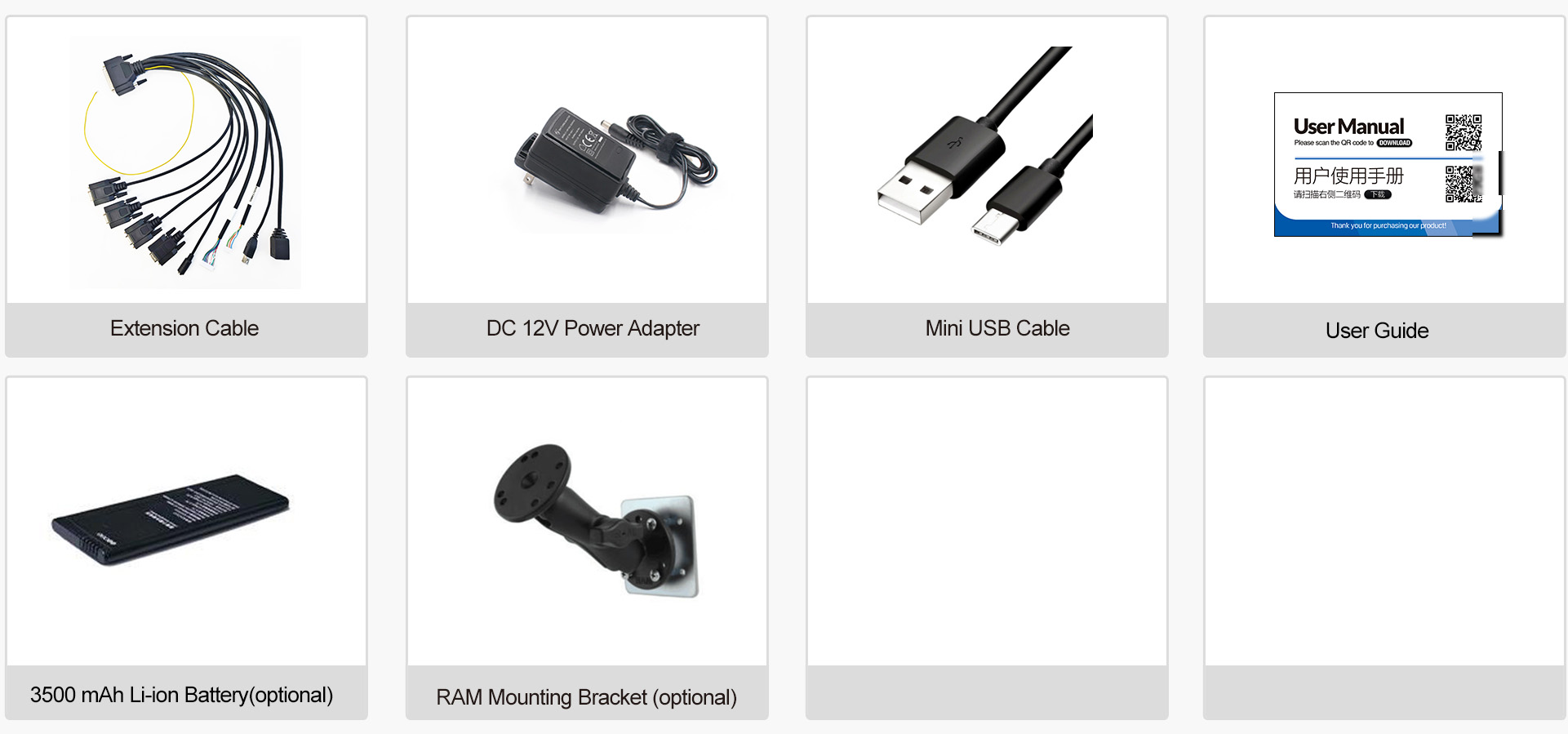

Accessories

Previous: 10.1 inch Android Panel PC With Rockchip Processor

Next: 15.6 Inch Touch Screen Panel PC

Display
Model No.	PC-7108
Touch Panel	Capacitive
Display	7″IPS
Resolution	1280*800
Brightness	800cd/m2
Power / Other
Power Supply	DC 9-36V (ISO 7637-II compliant) / DC 11-36V with built-in battery
Power Consumption	≤ 10W (≤ 18W with built-in battery)
Battery (optional)	Built-in 3500mAh, working time 2~3h
Dimension	221 x 139.7 x 29.5 mm
Weight	910g
Environment	Dust resistance test: IP6x
	Water resistance test: IPx7
	Operating temperature: -20°C ~ 60°C (-4°F ~ 140°F);
	Built-in battery: 0°C ~ 50°C (32°F ~ 122°F)
	Storage temperature: -20°C ~ 70°C (-4°F ~ 158°F)
System
CPU	NXP i. MX 8M Mini, ARM® Cortex®-A53 Quad-Core 1.6GHz processor
RAM	2G LPDDR4 / 4G LPDDR4 (optional)
ROM	16G Flash / 64G Flash (optional)
GPU	3D GPU (1x shader,OpenGL ES 2.0),2D GPU
OS	Android 9.0 /Linux Debian 10
Interface
LAN	1000M
GPIO	x8 (Software Freely define input and output)
COM	RS232 × 4;
	or RS232 × 3 + RS485/RS422 × 1;
	The optional Bluetooth and external GPS will each occupy an RS232 port.
Nano SIM Card Slot	× 1
MicroSD Card Slot	× 1
USB	USB Type-C OTG × 1, USB2.0 Host × 1
Earphone Jack	3.5mm
CAN	× 2 (Integrated CAN × 1 by default, CAN × 2 are optional)
Microphone	Built-in
Function
3G/4G	Global Edition:LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28 LTE-TDD: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B6/B8/B19 GSM: 850/900/1800/1900MHz EU Edition: LTE-FDD: B1/B3/B5/B7/B8/B20 LTE-TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: 900/1800MHz America Edition: LTE-FDD: B2/B4/B12 WCDMA: B2/B4/B5
WIFI	Optional
Bluetooth	Optional
GNSS	Optional
NFC	Read/Write Mode: ISO/IEC 14443 A&B up to 848 kbit/s, FeliCa at 212 &424 kbit/s, MIFARE 1K, 4K, NFC Forum type 1, 2, 3, 4, 5 tags, ISO/IEC 15693 All peer-to-peer modes Card Emulation Mode(from host): NFC Forum T4T (ISO/IEC 14443 A&B) at 106 kbit/s
ACC	Optional
Camera	Optional, 5.0MP (Front)
Sensors	Light sensor; Compass; Gyroscope & accelerometer;Proximity (optional).
