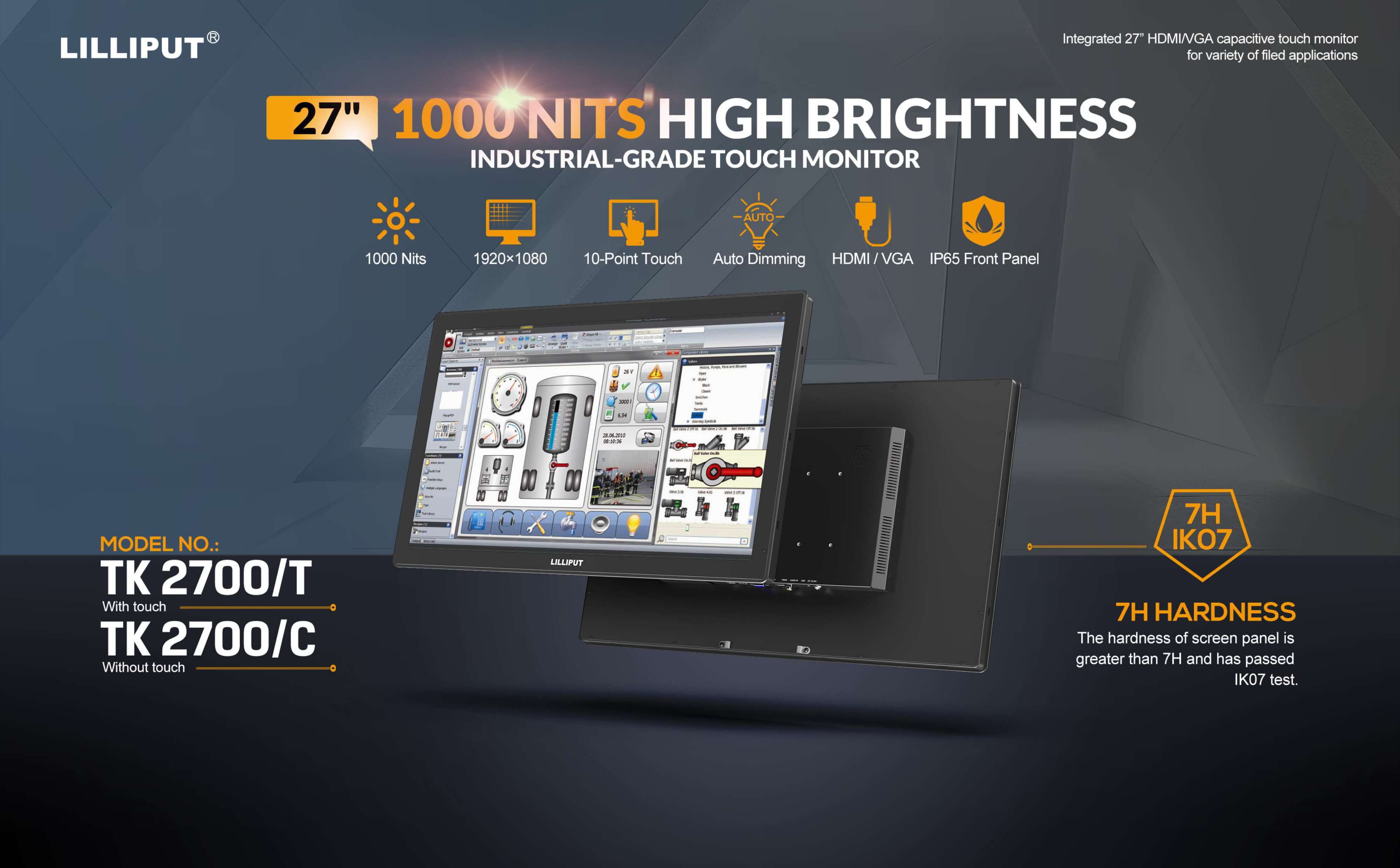

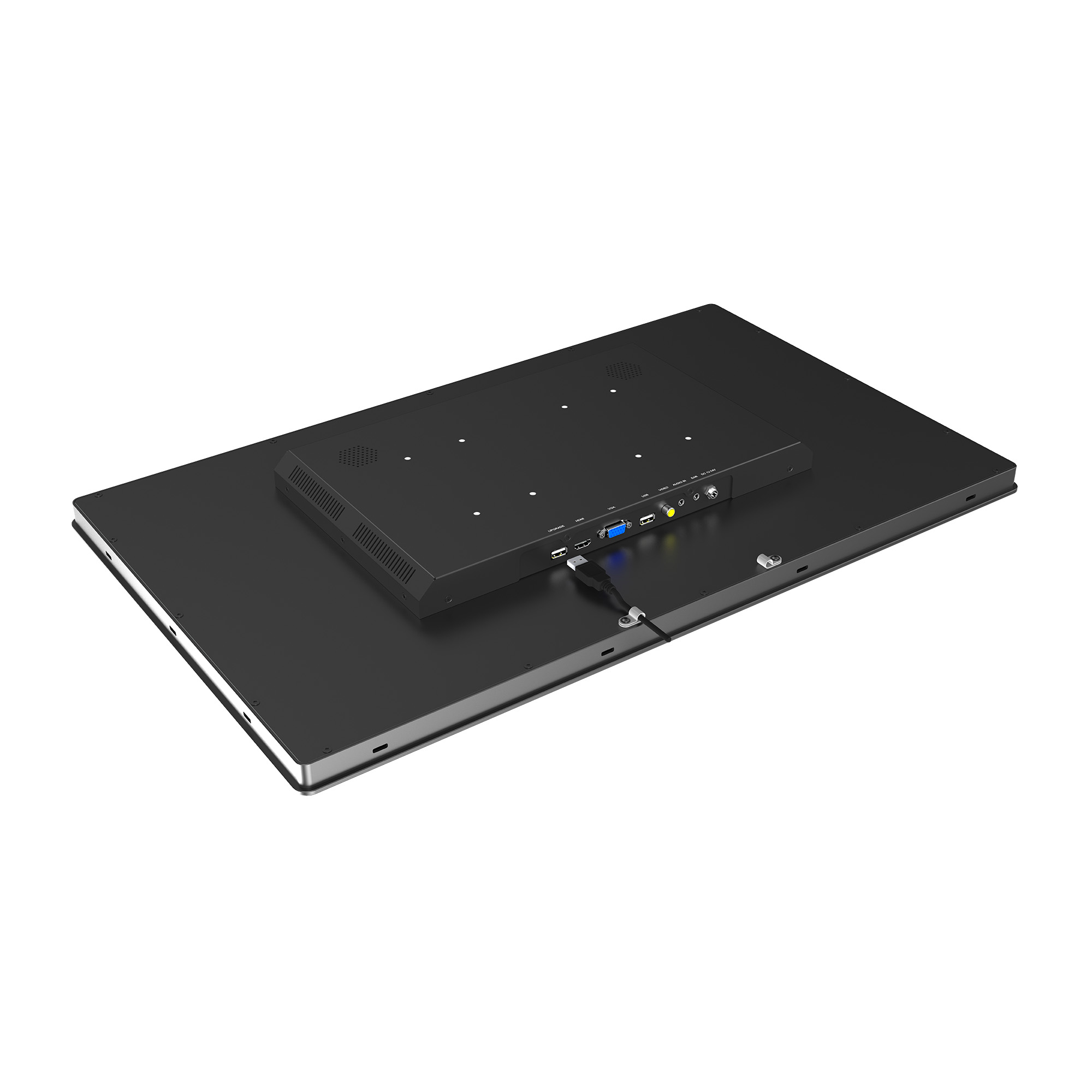

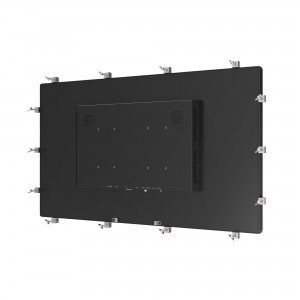

27 Inch 1000 Nits Touch Screen Monitor Featured Image
  • 27 Inch 1000 Nits Touch Screen Monitor
  • 27 Inch 1000 Nits Touch Screen Monitor
  • 27 Inch 1000 Nits Touch Screen Monitor
  • 27 Inch 1000 Nits Touch Screen Monitor
  • 27 Inch 1000 Nits Touch Screen Monitor
  • 27 Inch 1000 Nits Touch Screen Monitor

Short Description:

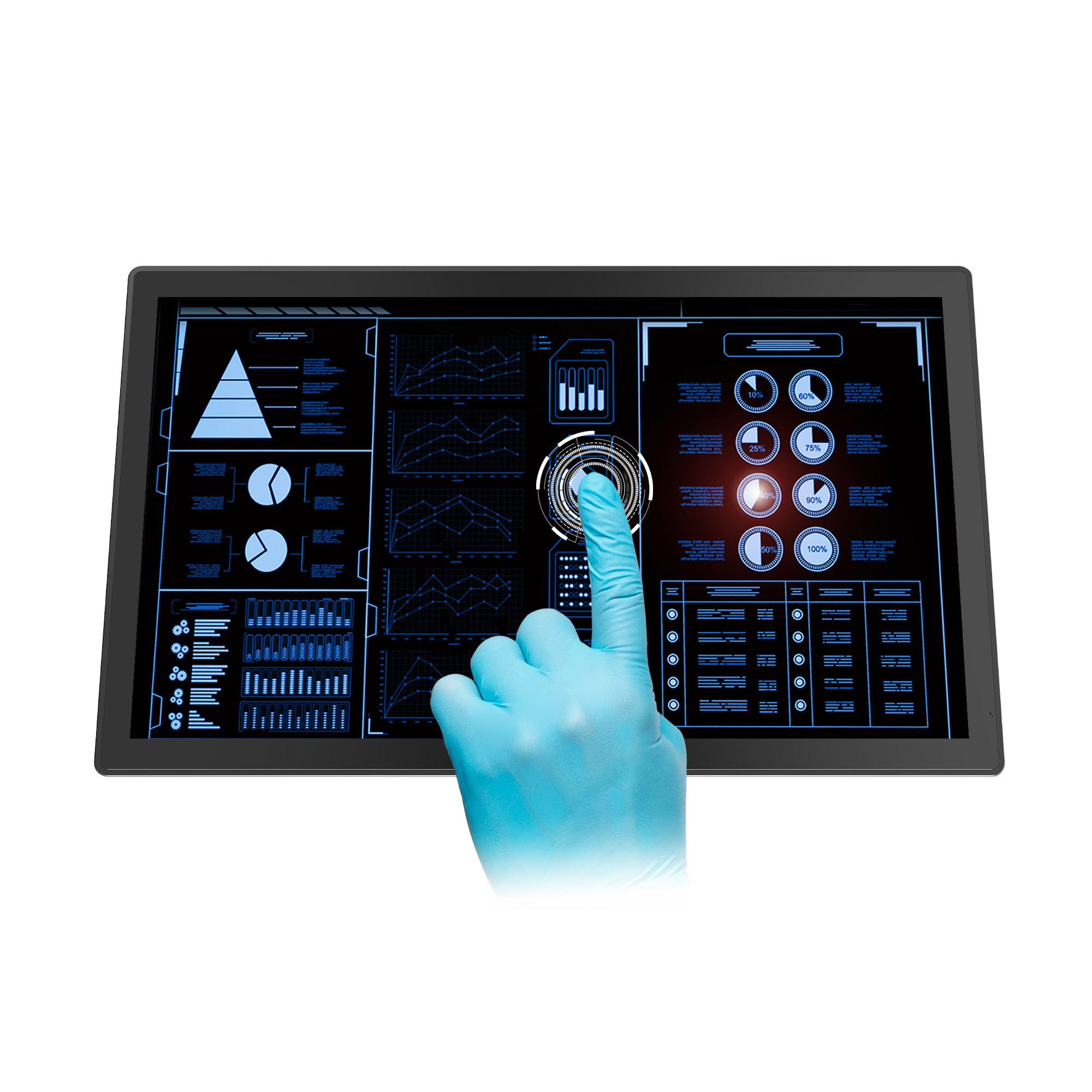

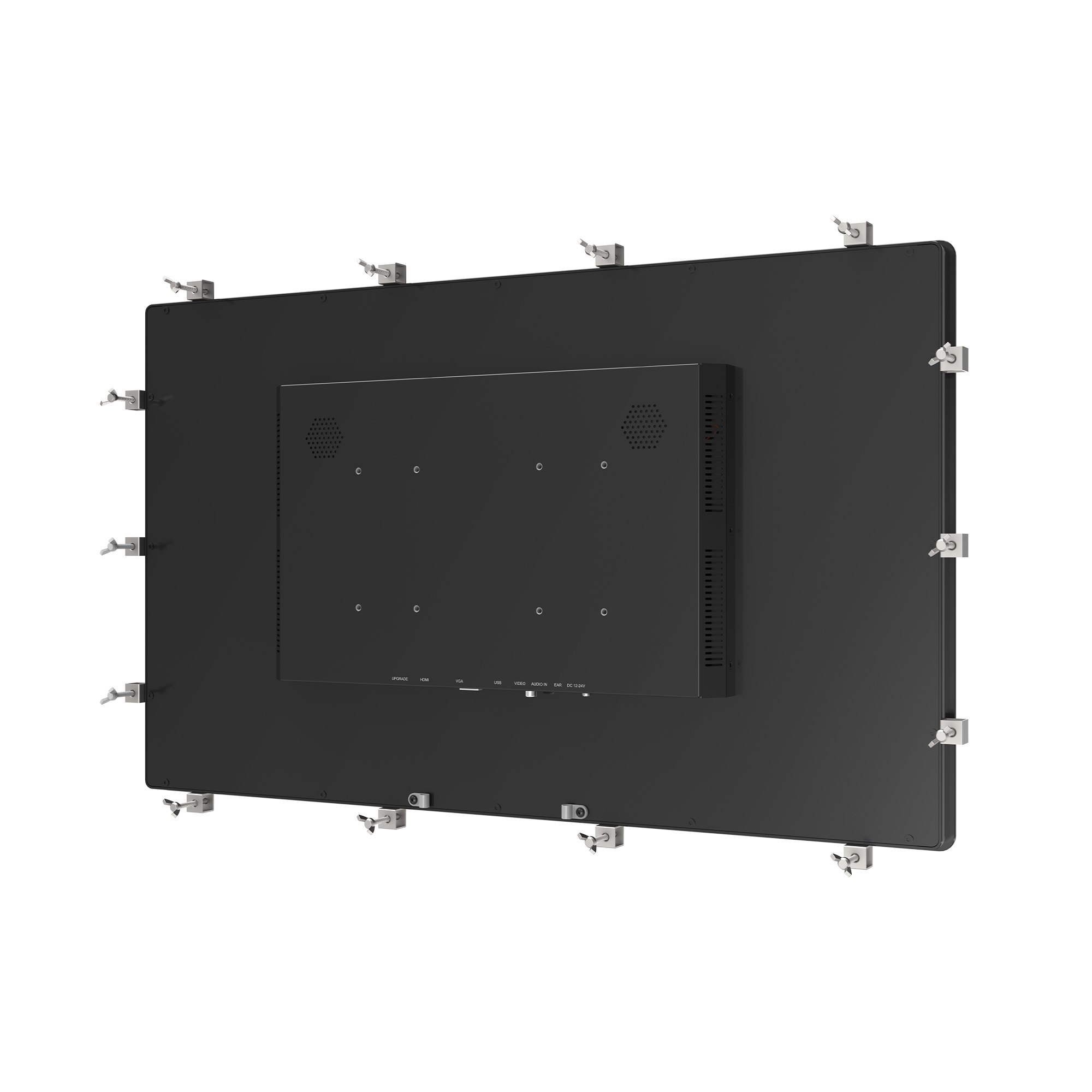

27-inch metal monitor with capacitive touch screen and 1000nits high brightness panel. It features anti-glare, anti-fingerprint, and UV resistance for clear outdoor viewing. It supports glove touch, has an IP65/NEMA 4 front panel, 7H hardness, and IK07 impact resistance. Horizontal and vertical installation are both supported for flexible use.


  • Model No. : TK2700/C & TK2700/T
  • Touch panel: 10-point PCAP (optional)
  • Display: 27 inch, 1920×1080, 1000 nits
  • Interfaces: HDMI, VGA, USB-C
  • Audio In/Out: Speaker, HDMI, Ear Jack
  • Feature: 1000nits Brightness, 10-points PCAP, IP65 Front Panel, Metal Housing
    • Download as PDF User guide

    Product Detail

    Specifications

    Accessories

    TK2700 DM_pages-to-jpg-0001

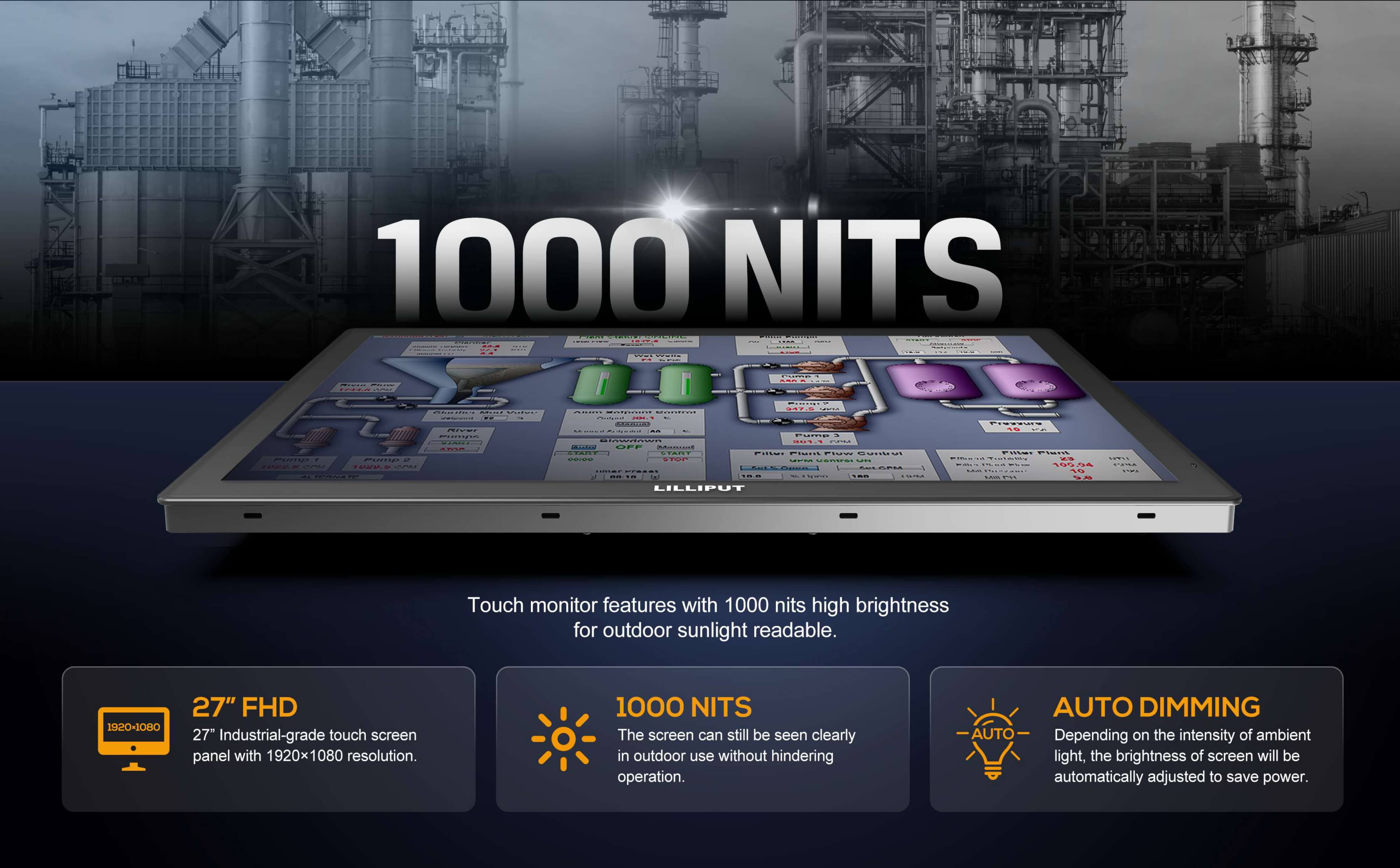

    TK2700 DM_pages-to-jpg-0002
    TK2700 DM_pages-to-jpg-0003

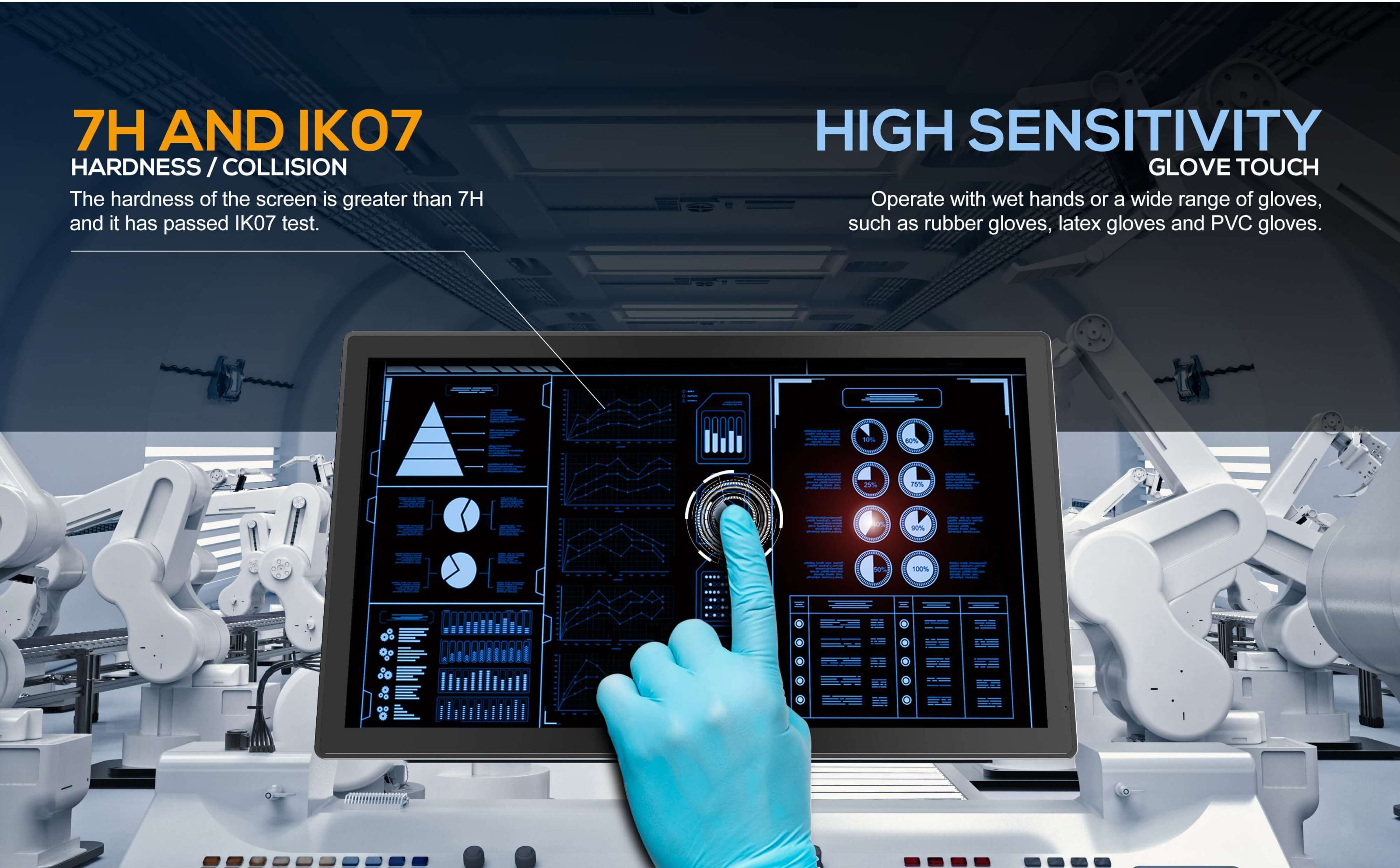

    TK2700 DM_pages-to-jpg-0004

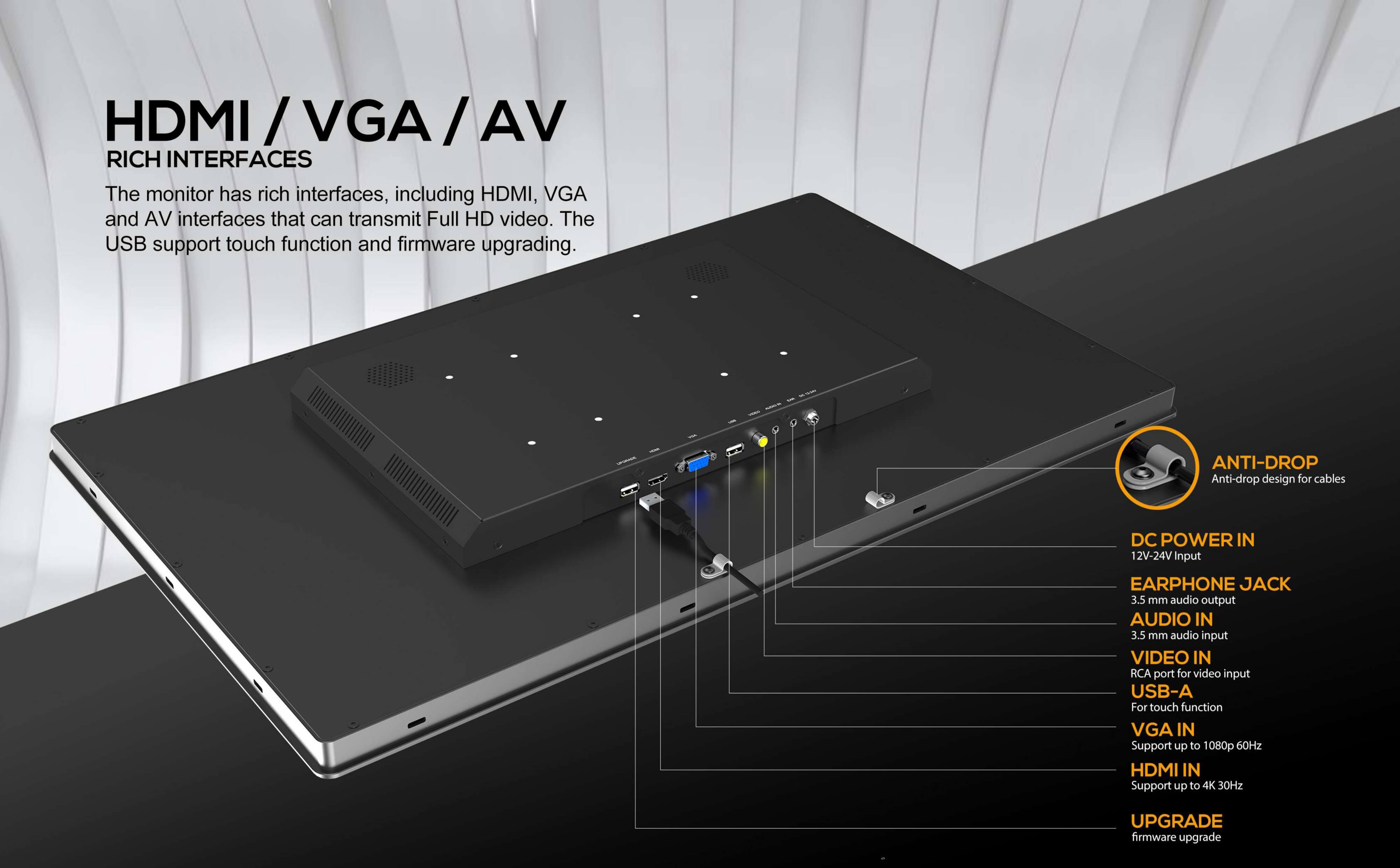

    TK2700 DM_pages-to-jpg-0005

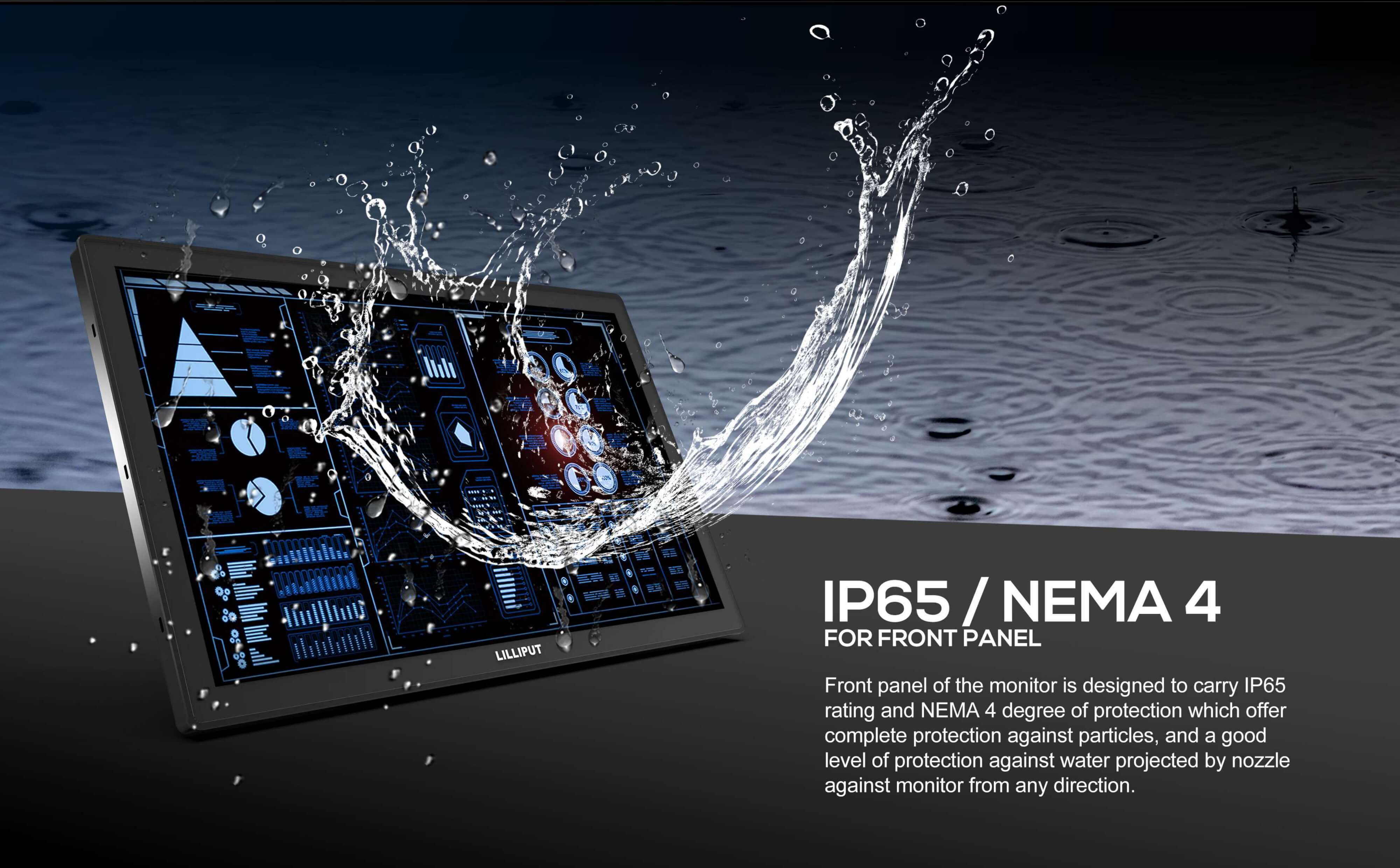

    TK2700 DM_pages-to-jpg-0006

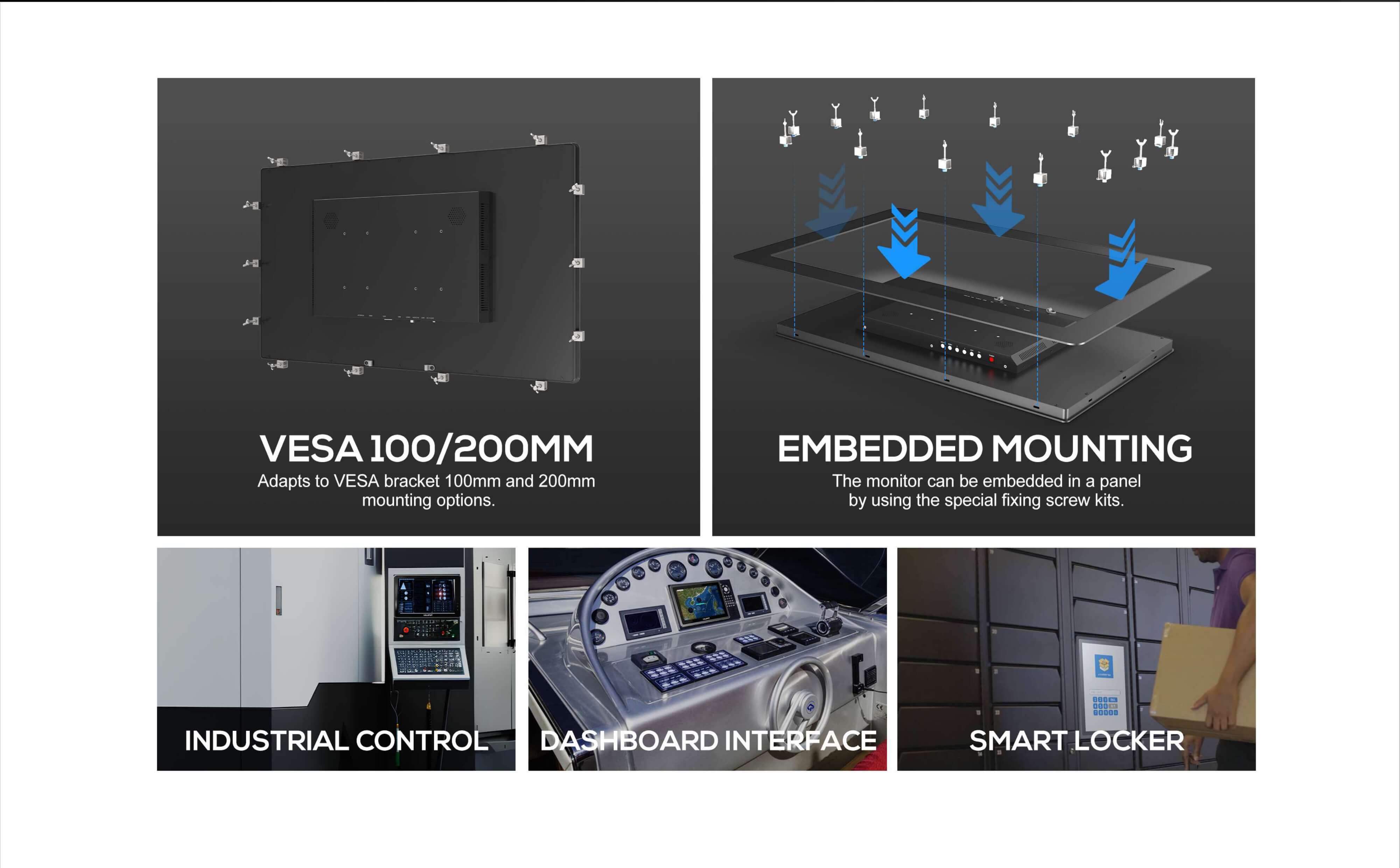

    TK2700 DM_pages-to-jpg-0007
  • Previous:
  • Next:
    • MODEL NO. TK2700
    DISPLAY Touch Screen 10-point PCAP
    Panel 27” LCD
    Physical Resolution 1920×1080
    Aspect Ratio 16:9
    Brightness 1000 nits
    Contrast 1000:1
    Viewing Angle 178° / 178° (H/V)

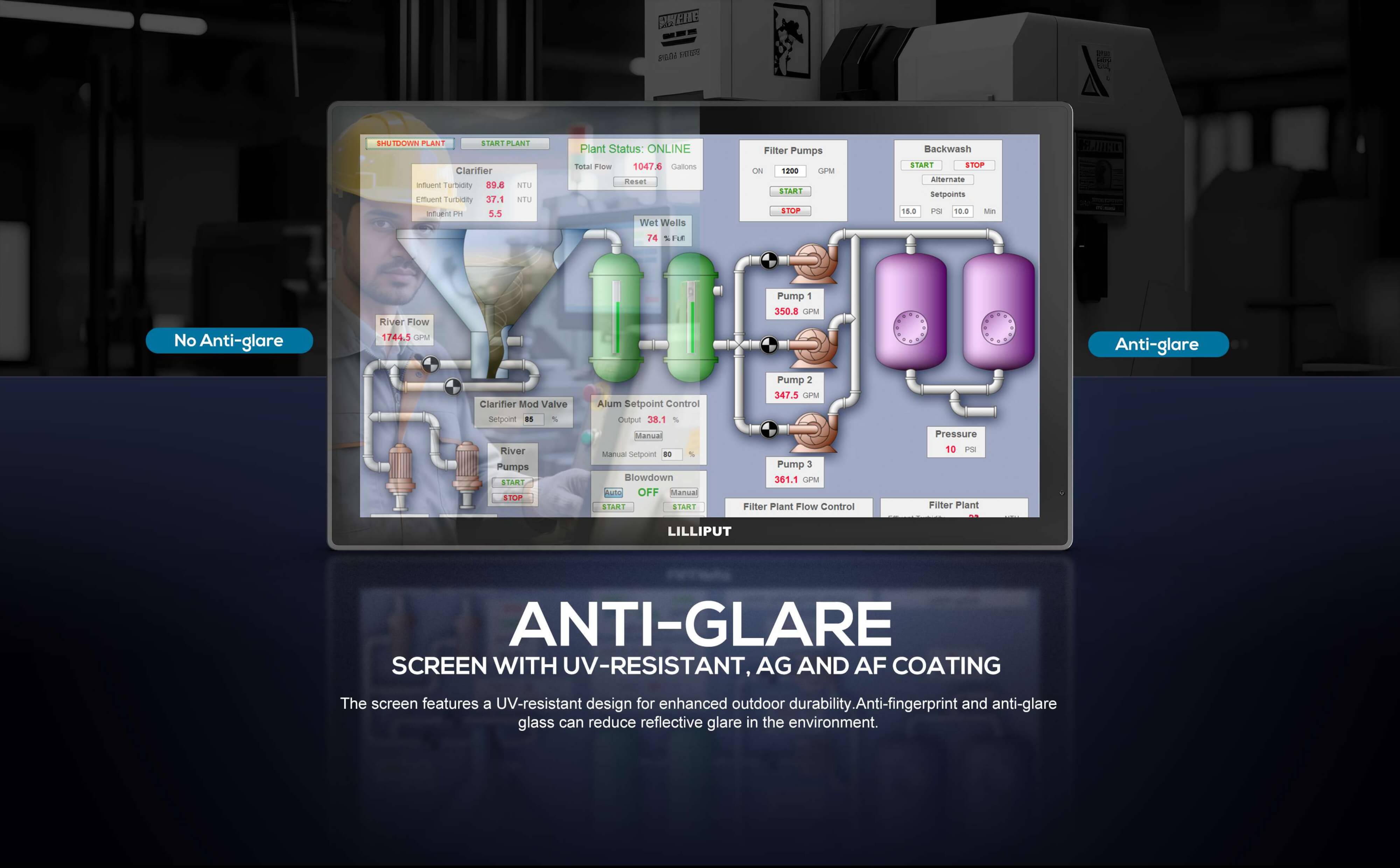

    Coating UV-resistant, anti-glare, anti-fingerprint
    Hardness/Collision Hardness≥7H(ASTM D3363), Collision ≥IK07 (IEC62262/EN62262)
    INPUT HDMI 1
    VGA 1
    Audio & Video 1
    USB-A 2 (For touch and upgrade)
    SUPPORTED
    FORMATS    		 HDMI 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
    VGA 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
    Audio & Video 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
    AUDIO IN/OUT Speaker 2
    HDMI 2ch
    Ear Jack 3.5mm
    POWER Input Voltage DC 12-24V
    Power Consumption ≤41W (12V)
    ENVIRONMENT IP Rating IP65 Front Panel, Front NEMA 4
    Vibration 1.5Grms, 5~500Hz, 1 hr/axis (IEC6068-2-64)
    Shock 10G, half-sine wave, last 11 ms(IEC6068-2-27)
    Operating Temperature -10°C~50°C
    Storage Temperature -20°C~60°C
    DIMENSION Dimension(LWD) 658.4mm × 396.6mm × 51.8mm
    Weight 9.5kg

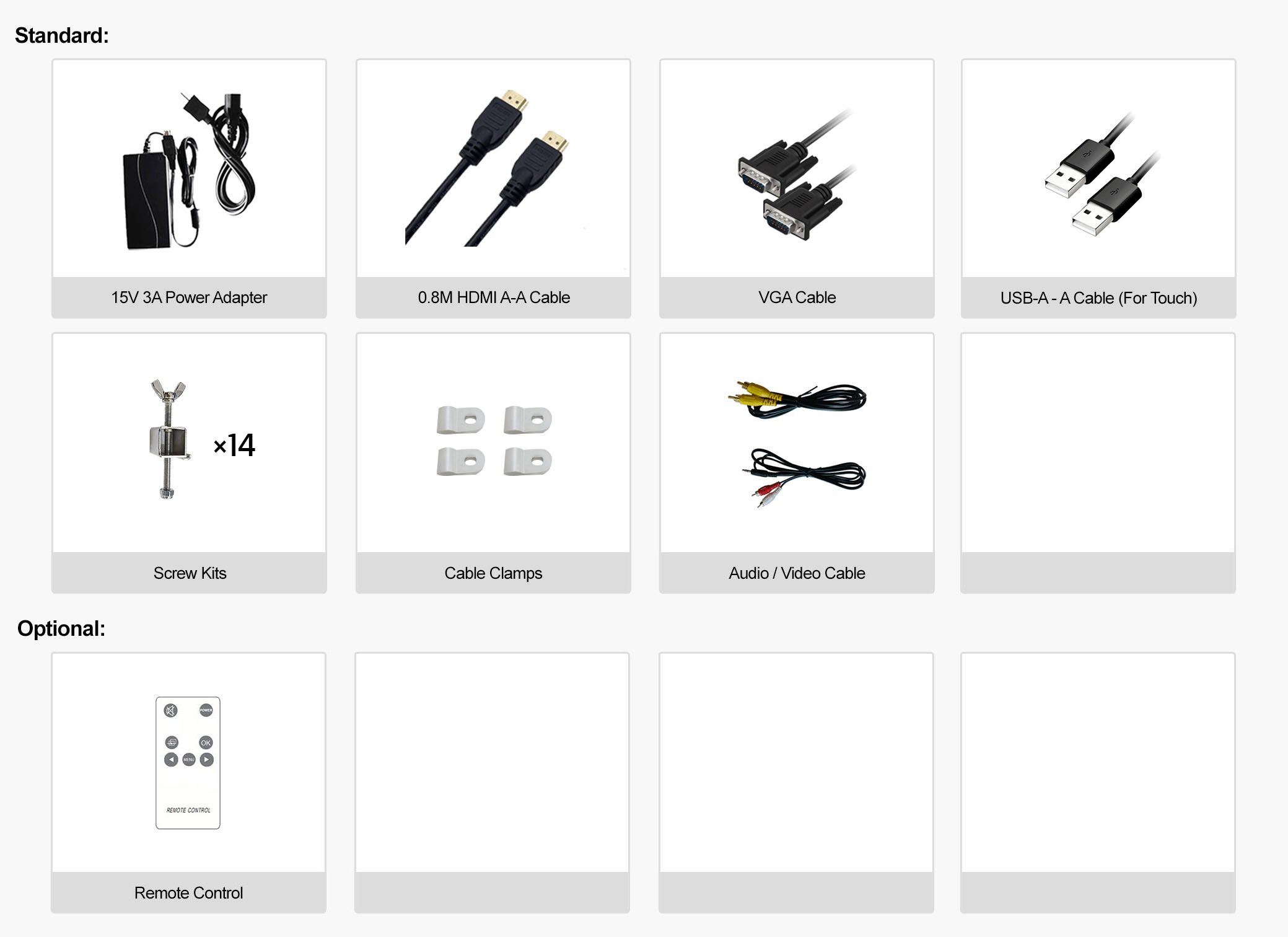

    Accessories
