| SYSTEM | CPU | RK3568 ARM Cortex®-A55 Quad-core 2.0GHz processor |
| OS | Linux Debian 11 (Kernel-5.10) | |
| RAM + ROM | 2GB DDR4 + 16GB eMMC, Optional 4GB + 64GB | |
| GPU | ARM G52 2EE | |
| PANEL | LCD | 10.1” IPS, 1280×800, 1000 nit, 170°/170° viewing angle |
| Touch Screen | Multi-point PCAP with G+G technology | |
| Hardness / Collision | Hardness ≥7H (ASTM D3363), Collision ≥IK06 (IEC6262/EN62262) | |
| Transmittance | ≥86% | |

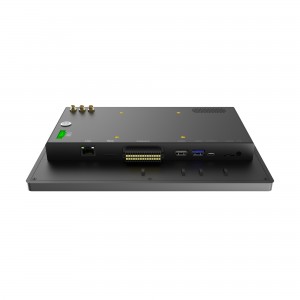

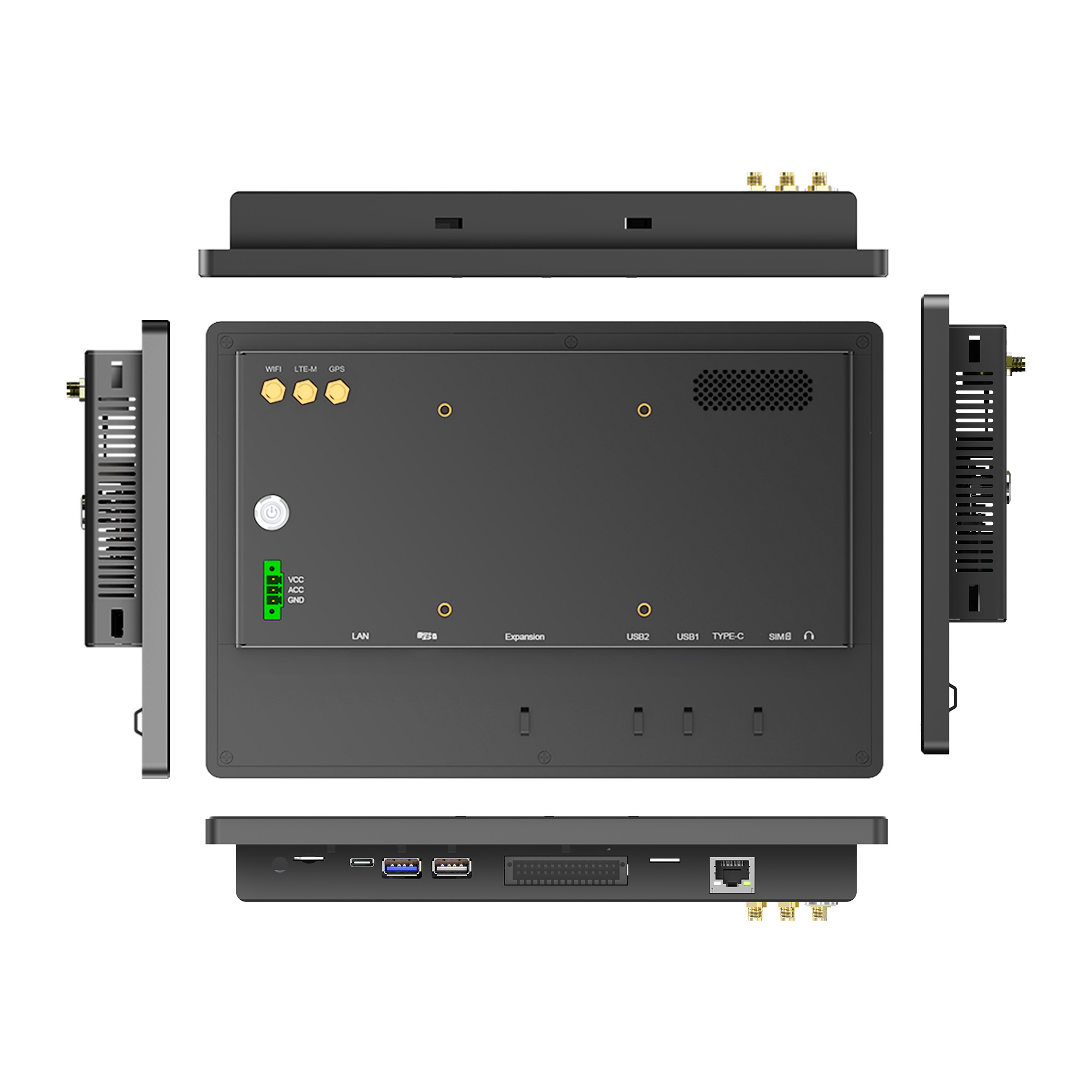

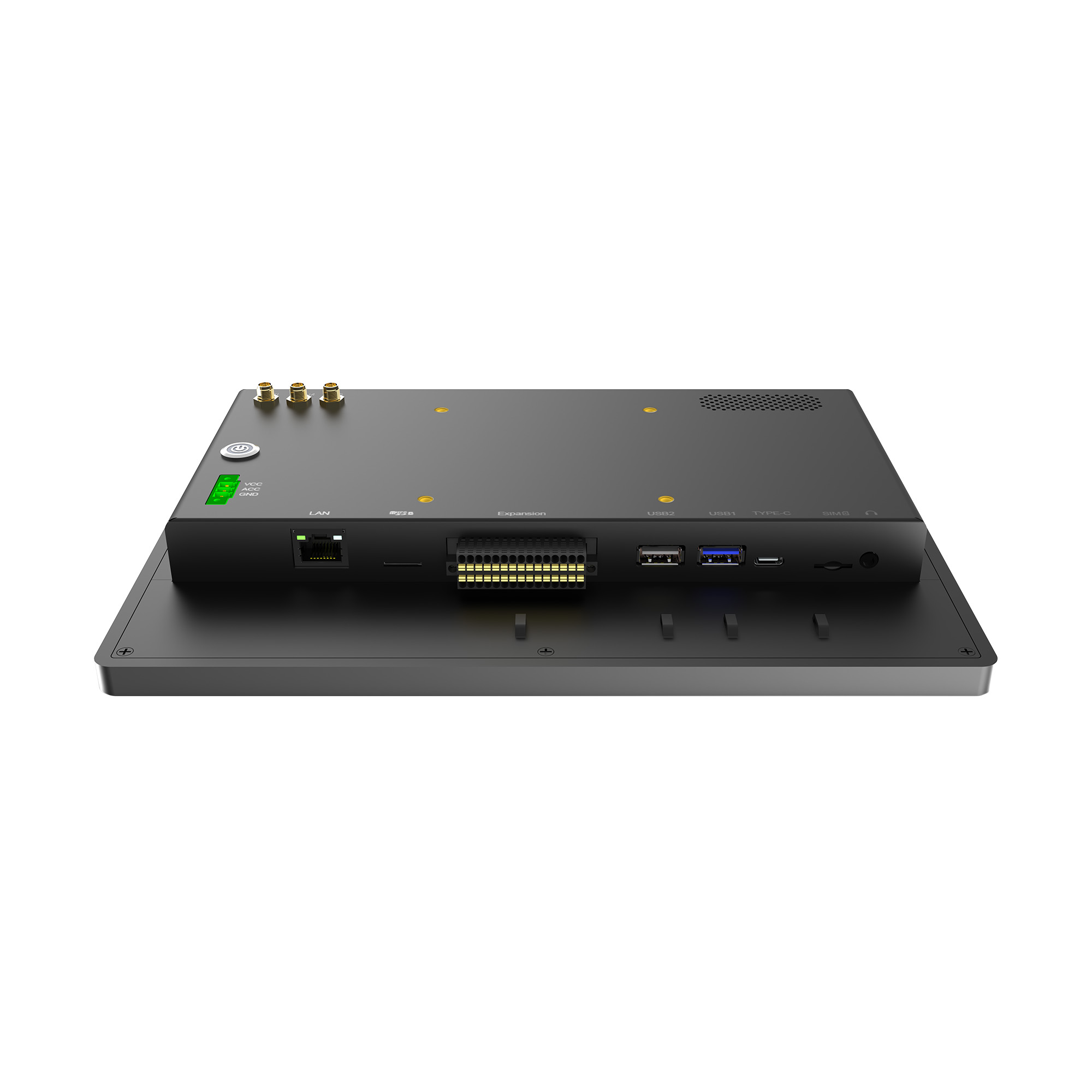

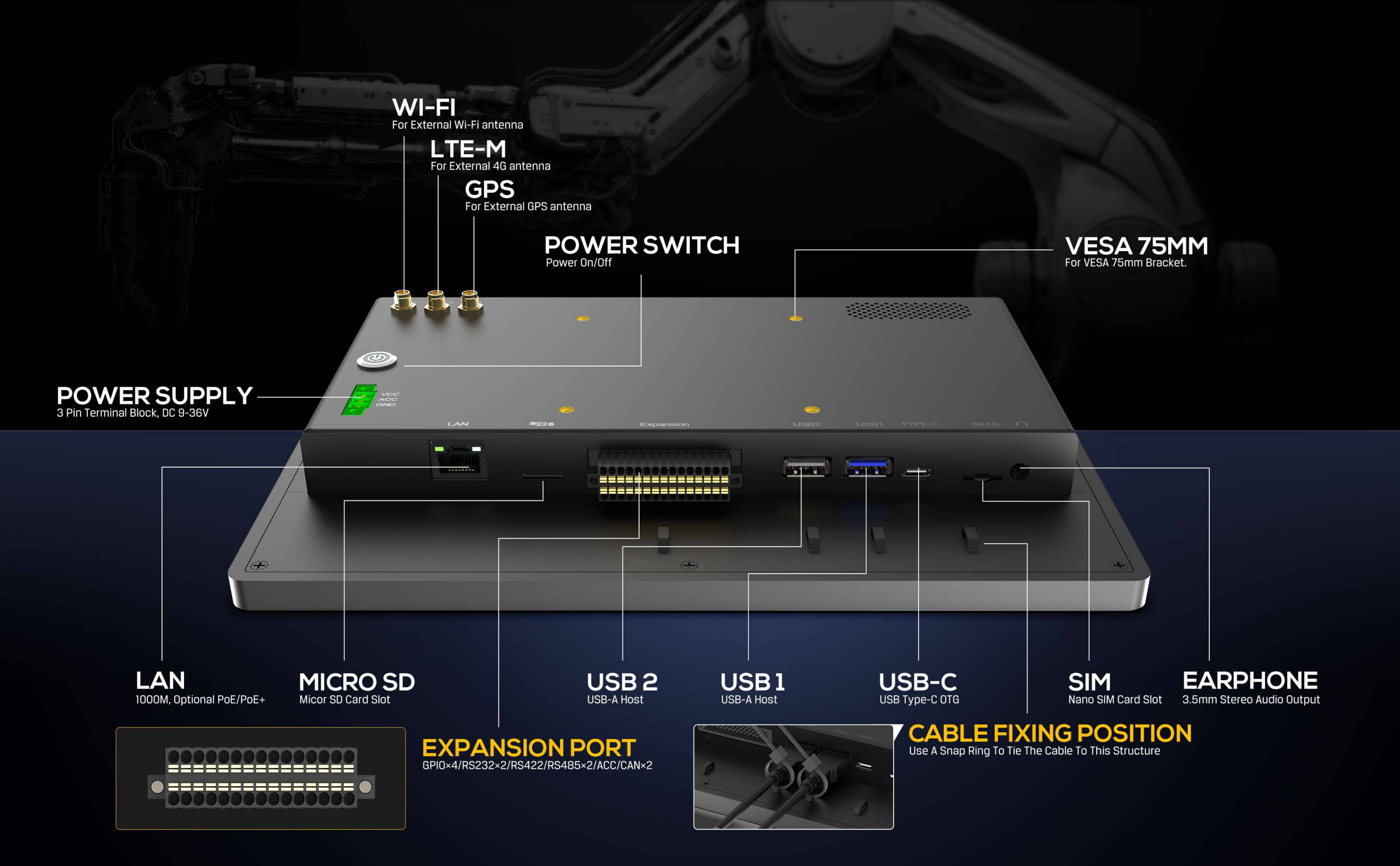

| INTERFACE | LAN | 1000M×1 (Optional PoE/PoE+: IEEE802.3 af/at) |
| GPIO | ×4 (Input×4) | |
| COM | RS232×2, RS485×2, RS422×1 | |
| CAN | ×2, support CAN 2.0b protocol | |
| Nano SIM | ×1 | |
| Micro SD Card | ×1, support up to 1TB | |
| USB | USB host×2, USB Type-C OTG×1 | |
| ACC | ×1 | |
| Earphone Jack | 3.5mm | |
| WIRELESS | Wi-Fi | Optional, 802.11a/b/g/n/ac, 2.4GHZ/5GHZ |
| Bluetooth | Optional, 2402MHz~2480MHz | |
| Cellular Network | Optional 3G/4G (LTE, DC-HSPA+, UMTS, EDGE, GPRS, GSM) | |
| GNSS | Optional (GPS, GLONASS) | |
| BUILT-IN | Front Camera | Optional, 5.0MP |
| Sensors | Light sensorOptional, Gyroscope, Accelerometer, Magnetic sensor | |
| Speaker | ×1 | |
| POWER | Power Supply | DC 9~36V (ISO 7636-II compliant) |
| Power Consumption | ≤16W | |
| OTHER | Dimension | 255mm×172mm×32mm |
| Weight | 1.36kg | |
| Protection Rating | Front IP65 (IEC60529), Front NEMA4 | |
| Vibration | 1.5Gms, 5~500Hz, 1hr/axis (IEC 60068-2-64) | |
| Shock | 10G, half-sine wave, last 11ms (IEC 60068-2-27) | |
| Environment | Operating Temp: -10°C~60°C (14°F~140°F) | |
| Storage Temp: -20°C~65°C (-4°F~149°F) |
