Short Description:

The smart converter which can be easily read the CAN Bus data through RS232, RS422 and RS485. It supports baud rates from 2400 to 921600 bps for series port and baud rates from 10K-1Mbps for CAN Bus data transfer. Moreover, the device comes with 3500Vrms isolation voltage and ±8KV anti-static grade. Therefore, it can working in extreme environments.


  • Model: CR225
  • CAN channels: 1 channel
  • Serial ports: RS232/485/422 software selection
  • Configured interface: RS232
  • Product Detail

    SPECIFICATION

    Accessories

    1

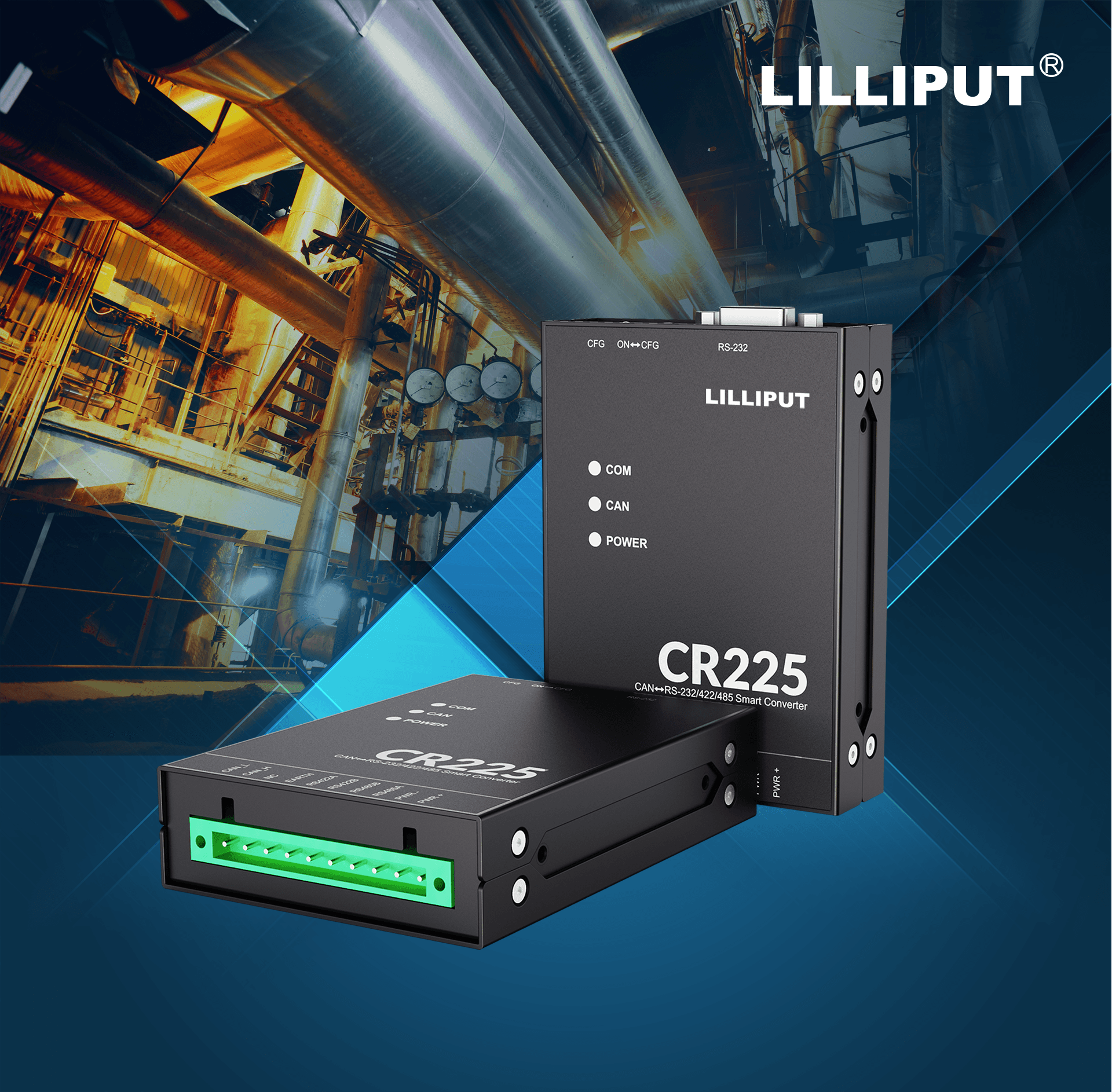

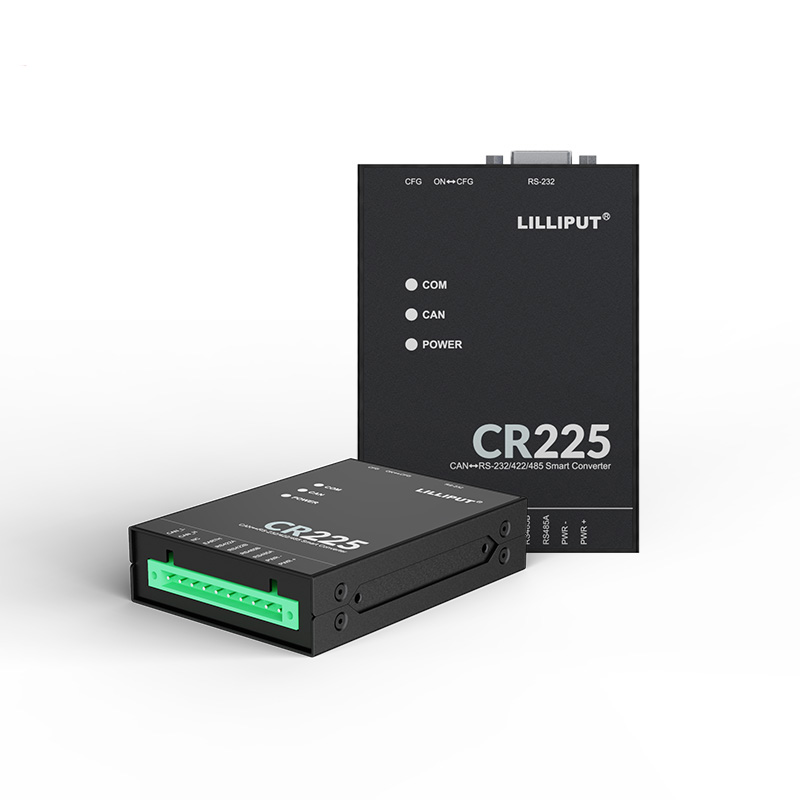

    SMART CONVERTER
    RS232/422/485 ⇄CAN BUS



    The smart converter which can be easily read the CAN Bus data through RS232, RS422 and RS485. It supports baud rates from 2400 to 921600 bps for series port and baud rates from 10K-1Mbps for CAN Bus data transfer. Moreover, the device comes with 3500Vrms isolation voltage and ±8KV anti-static grade.Therefore, it can working in extreme environments.

    2

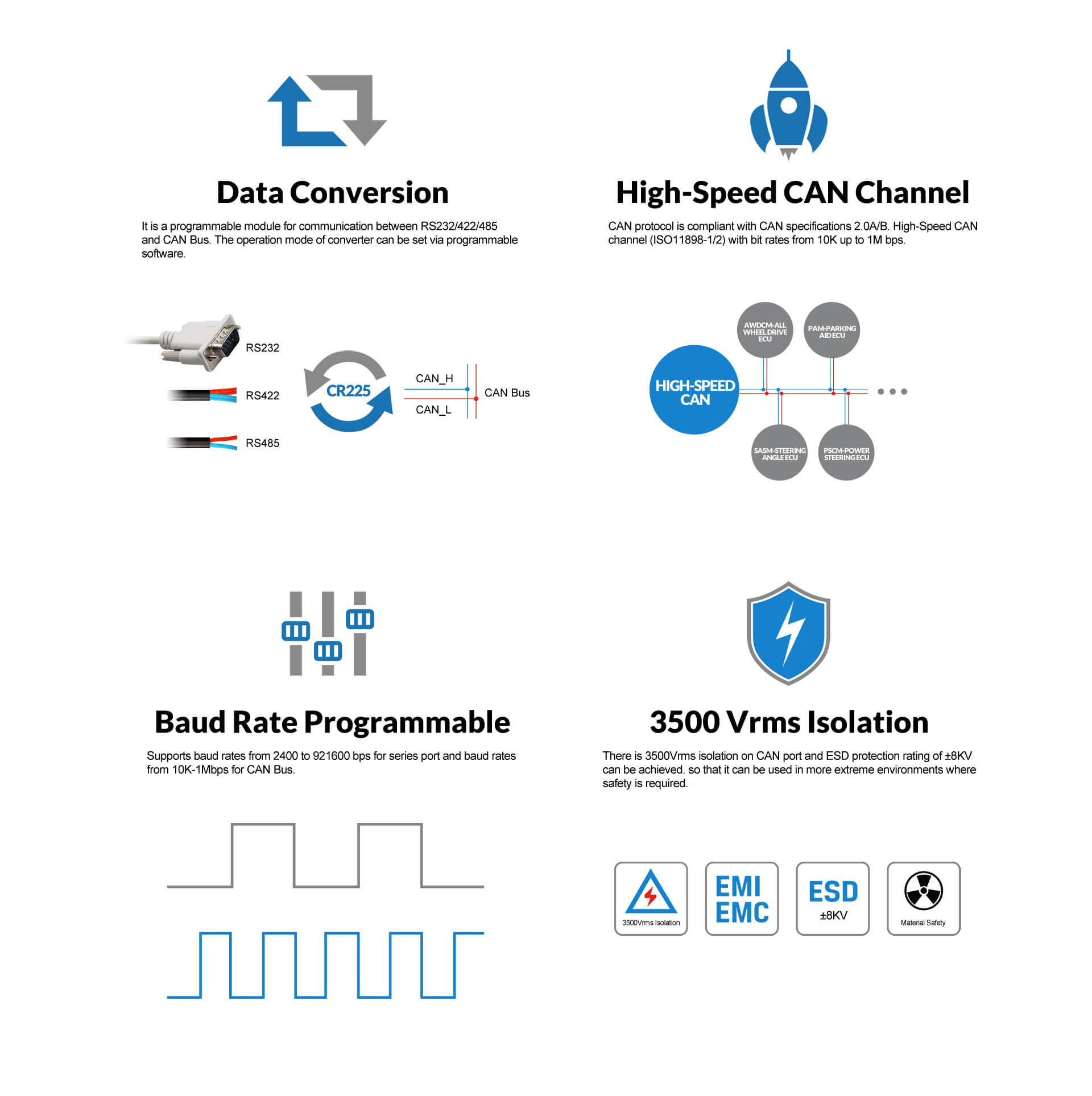

    Technical Features

    The converter is not only focused on its technical details, but also the best choice in terms of safety.
    Excellent performance of protection creates a safe and stronge bridge between devices.

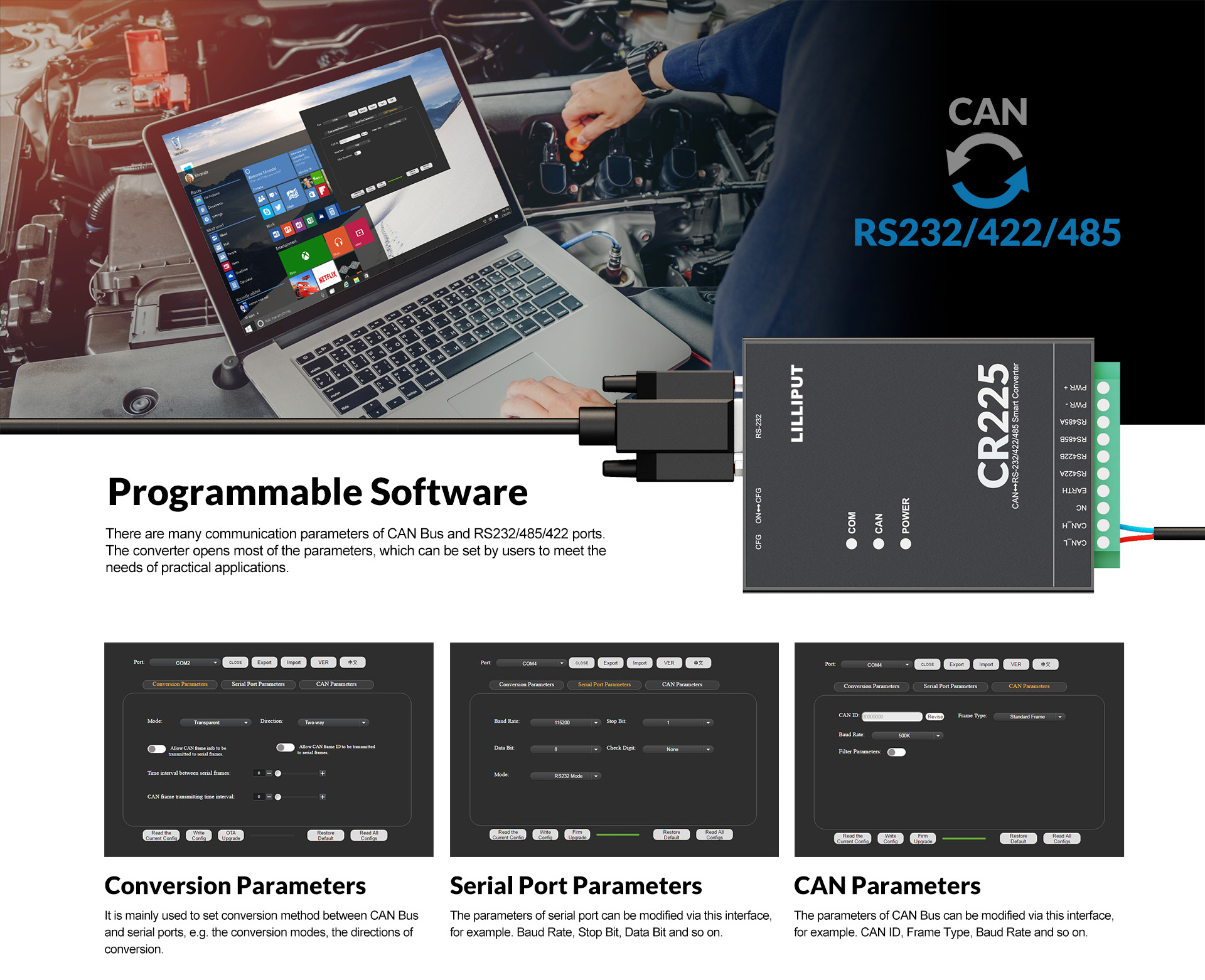

    CR225-LILLIPUT

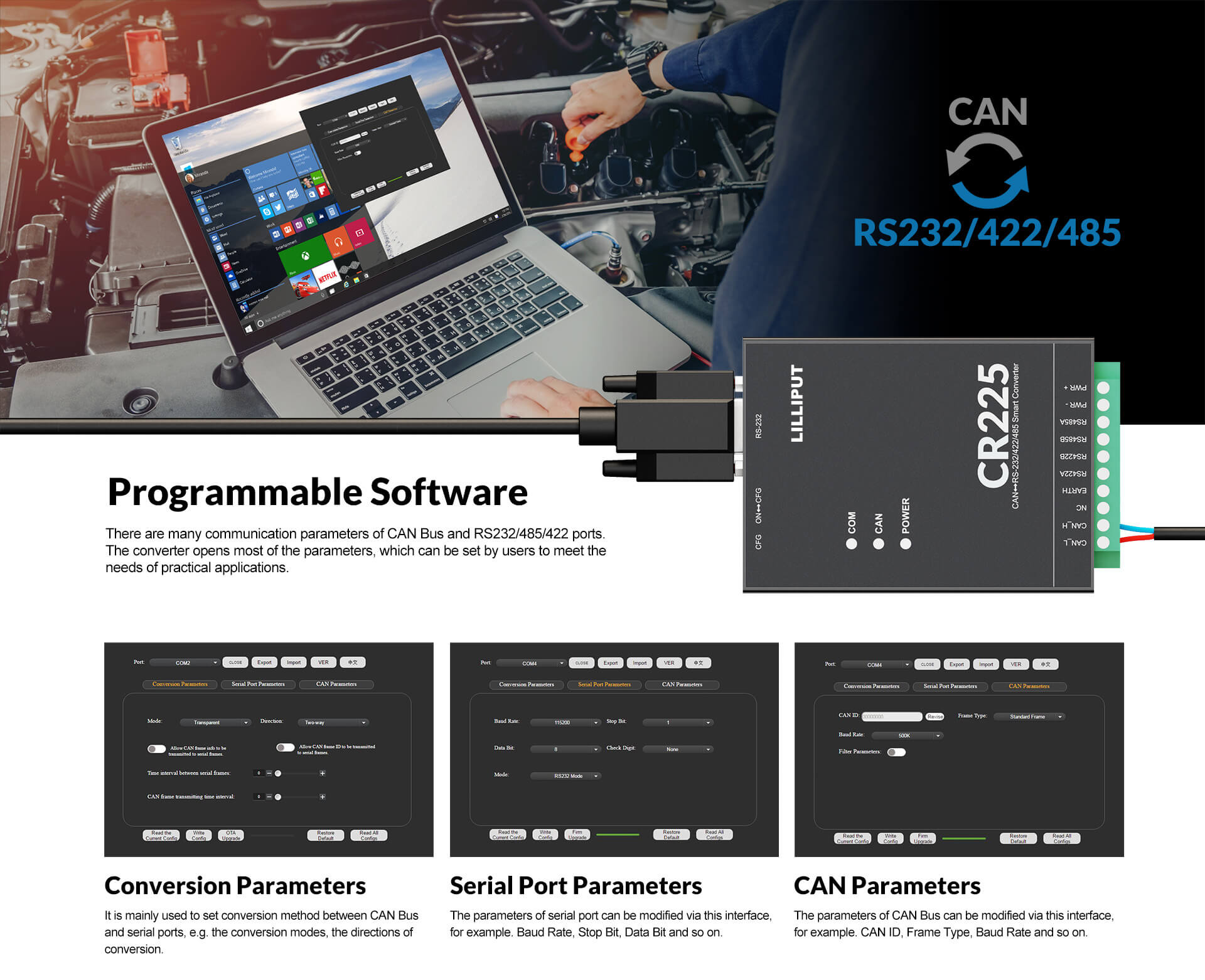

    CR225-LILLIPUT-1
    7

  • Previous:
  • Next:

  • Model CR225
    CAN Channels 1 channel
    CAN baud rate 10k-1Mbps
    Serial ports RS232/485/422 software selection
    Baud rate of serial ports 2400-921600bps
    Configured interface RS232
    Data reception capability 1200 frames/second
    Data transmission 1200 frames/second
    Interface card format conversion Supported
    Transparent conversion Supported
    Transparent mark-borne conversion Supported
    120ohm terminal resistor External
    ESD ±8KV
    Operating temperature -40°C ~ 85°C
    Supply voltage DC 9-36V
    Material Metal housing
    Dimension 104mm*75.5mm*24.5mm

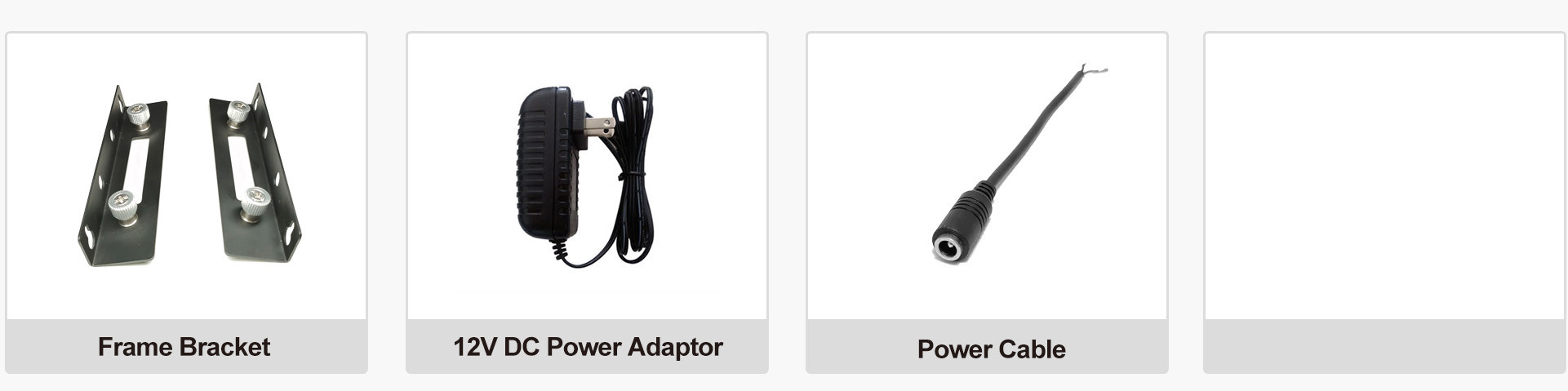

    accessories
