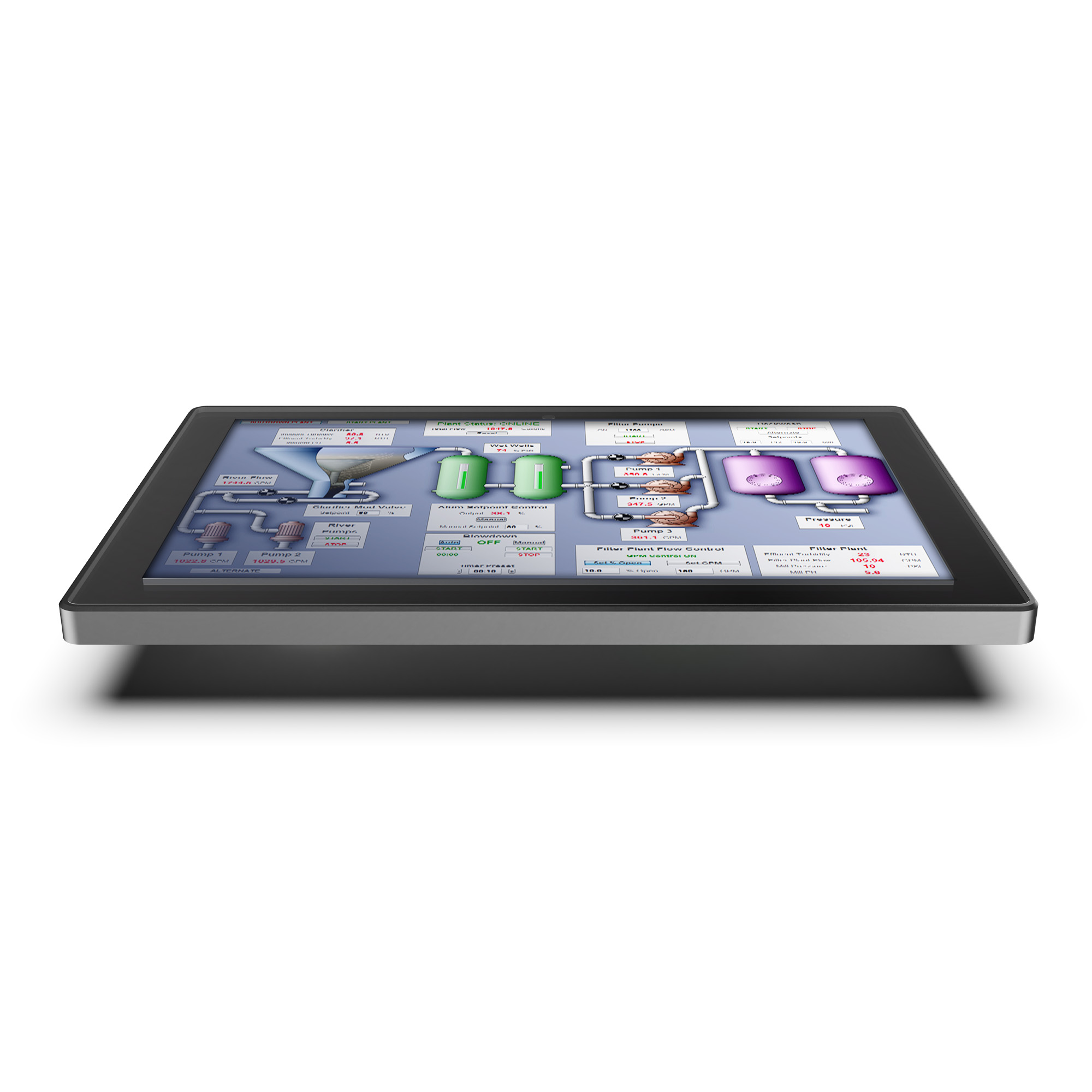

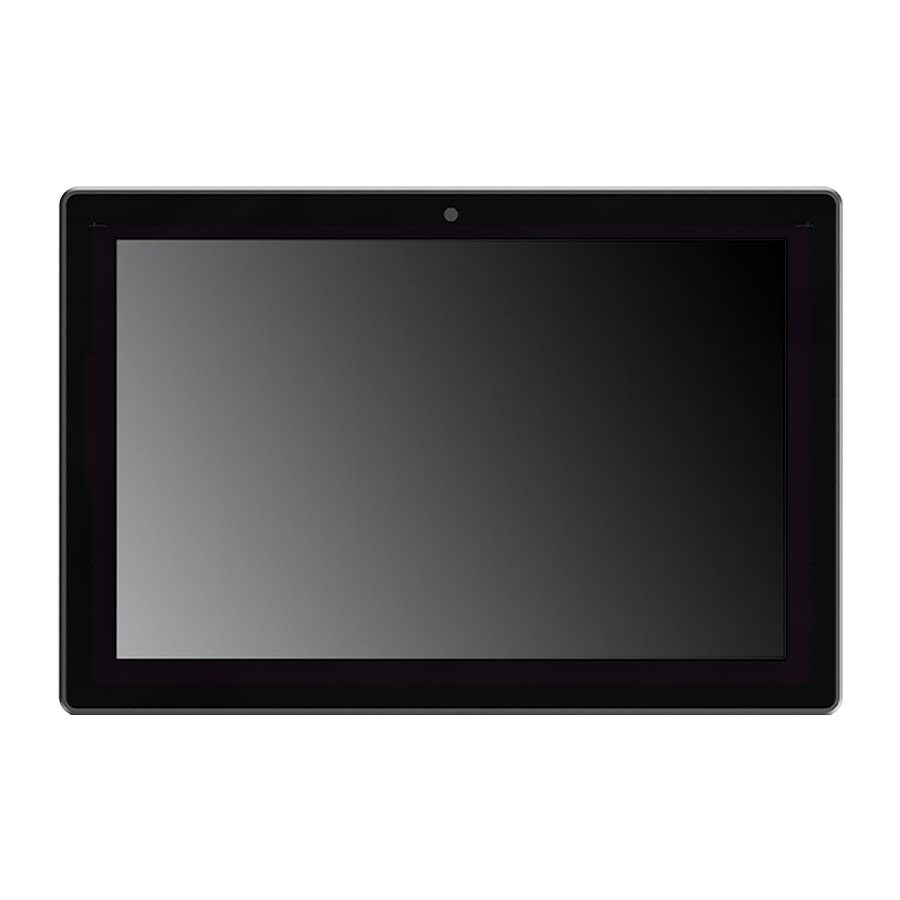

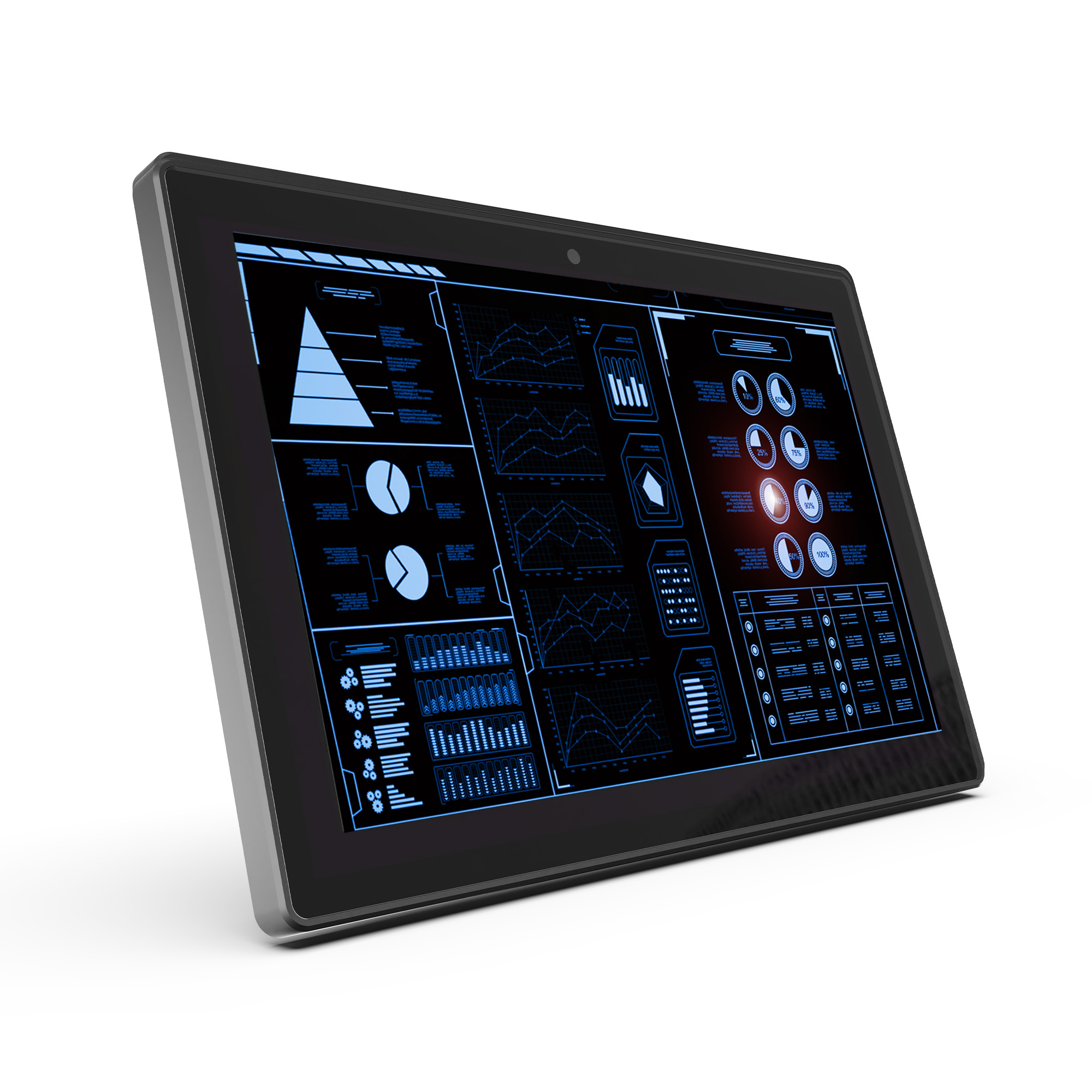

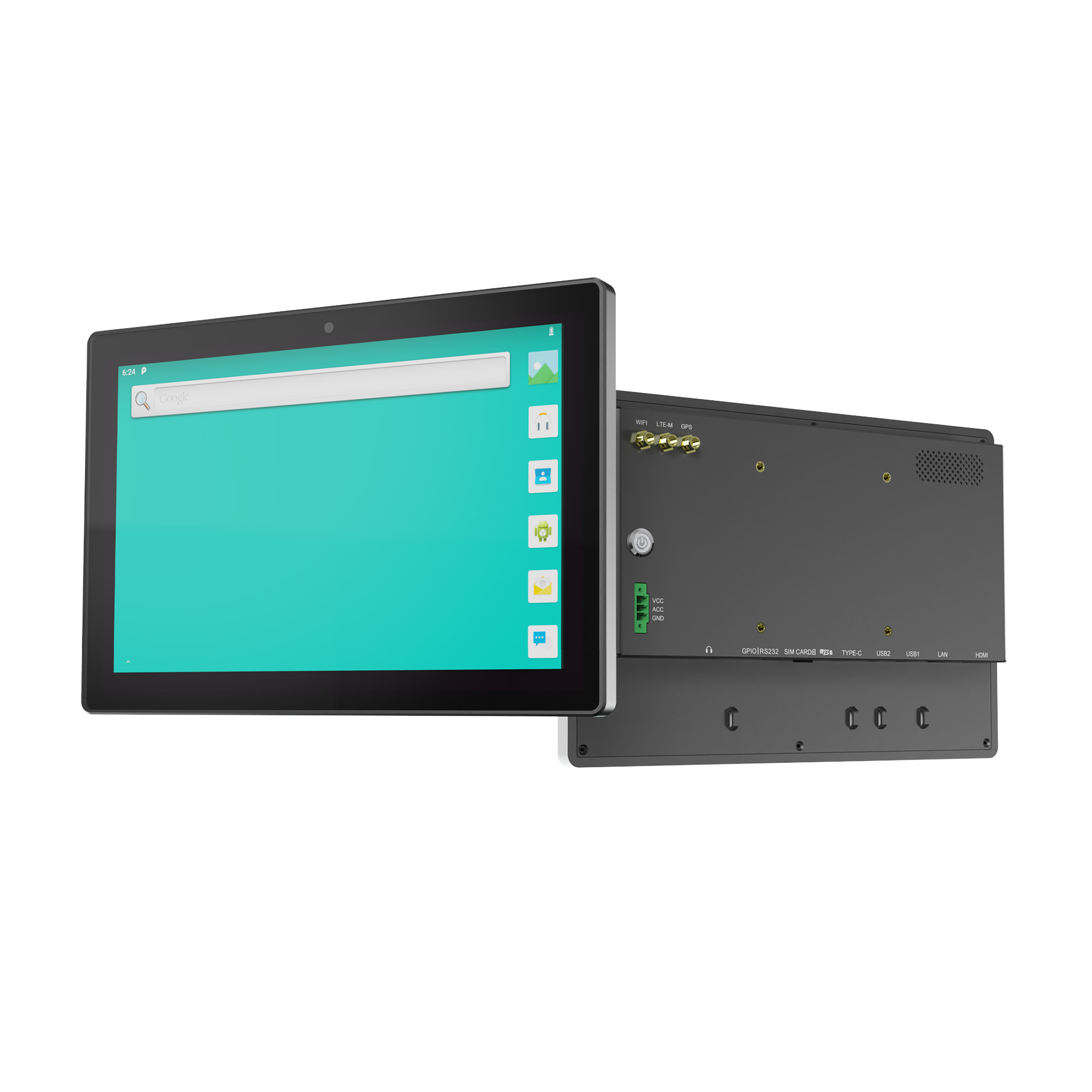

10.1 inch High Brightness IP65 Android Industrial Touch Panel PC Featured Image
  • 10.1 inch High Brightness IP65 Android Industrial Touch Panel PC
  • 10.1 inch High Brightness IP65 Android Industrial Touch Panel PC
  • 10.1 inch High Brightness IP65 Android Industrial Touch Panel PC
  • 10.1 inch High Brightness IP65 Android Industrial Touch Panel PC
  • 10.1 inch High Brightness IP65 Android Industrial Touch Panel PC
  • 10.1 inch High Brightness IP65 Android Industrial Touch Panel PC

Short Description:

. Qualcomm Cortex-A53 64bit Octa-core processor 1.8GHz
.10.1 ” multi-point capacitive touch screen, with 1280*800 resolution

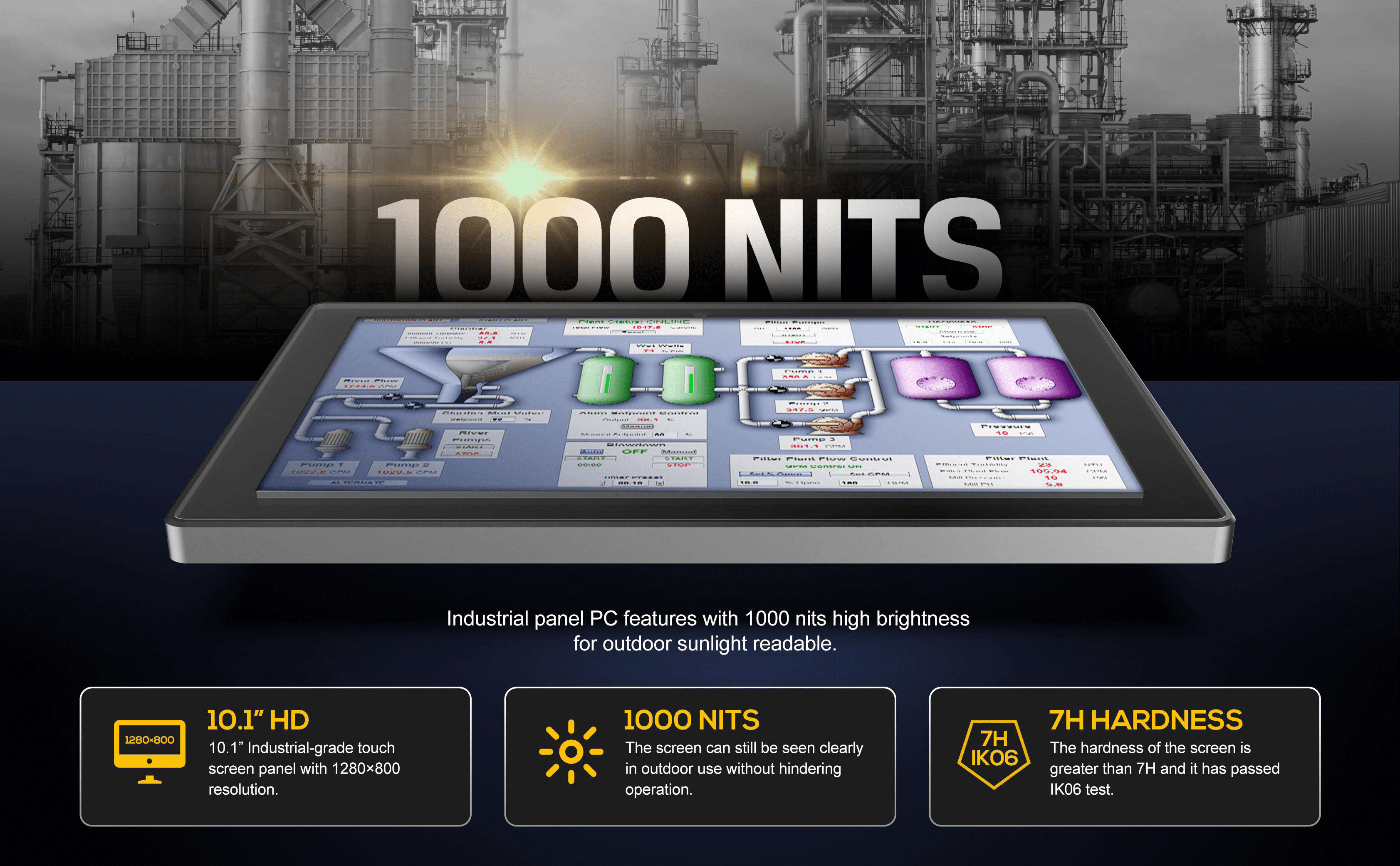

.1000cd/m² brightness, 7H hardness, IK06 test
.Android 9.0 operating system
.2GB RAM and 16GB ROM (4GB RAM and 64GB ROM for optional)
.PoE + power supply
.With Wifi and Bluetooth
.Optional Functions : 3G/4G Network Cellular ,GNSS,Front Camera


  • Model: PC-1011
  • Resolution: 1280*800
  • Brightness: 1000nits
  • OS: Android 9.0
  • RAM/ROM: 2GB RAM and 16GB ROM (4GB RAM and 64GB ROM for optional)

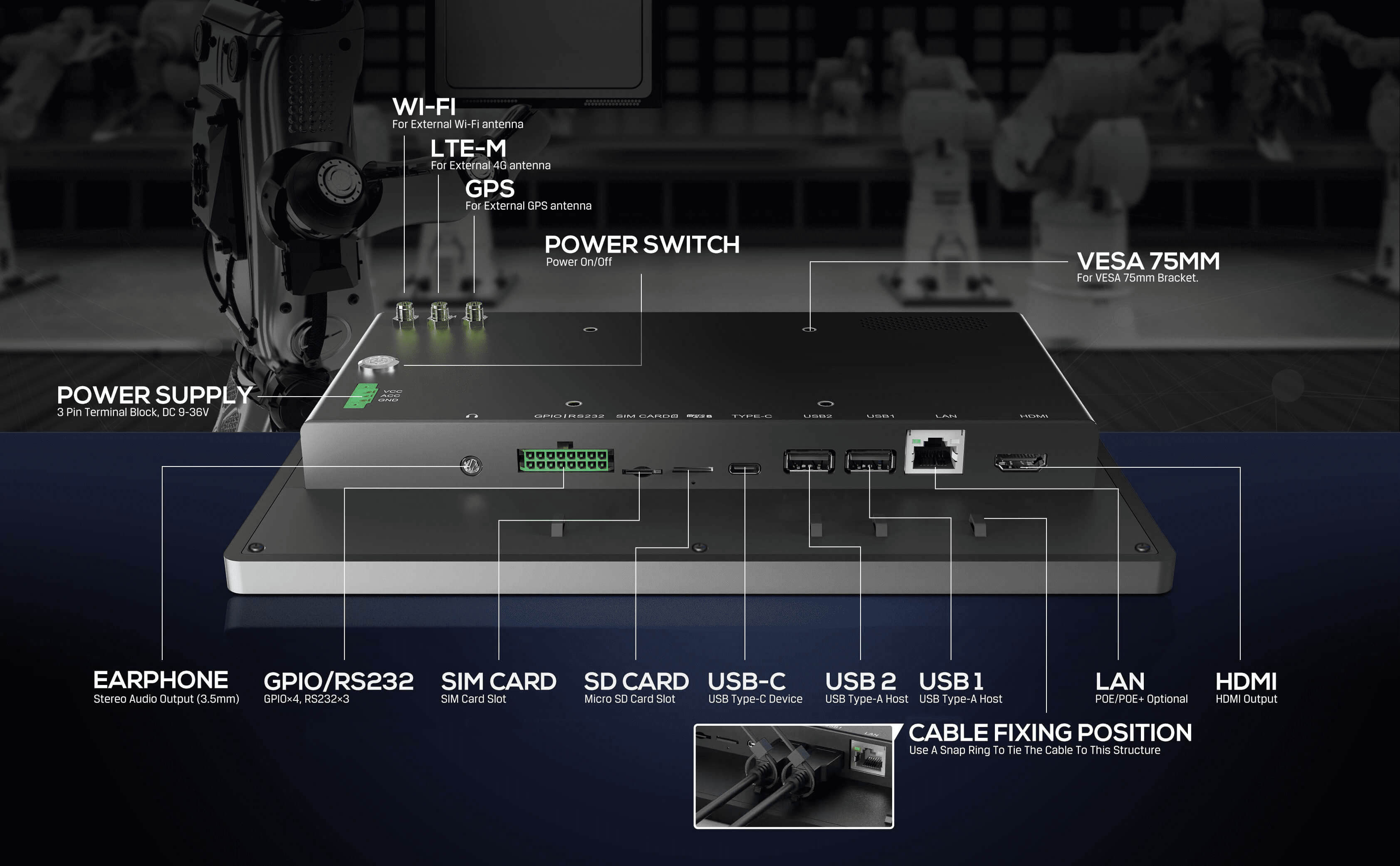

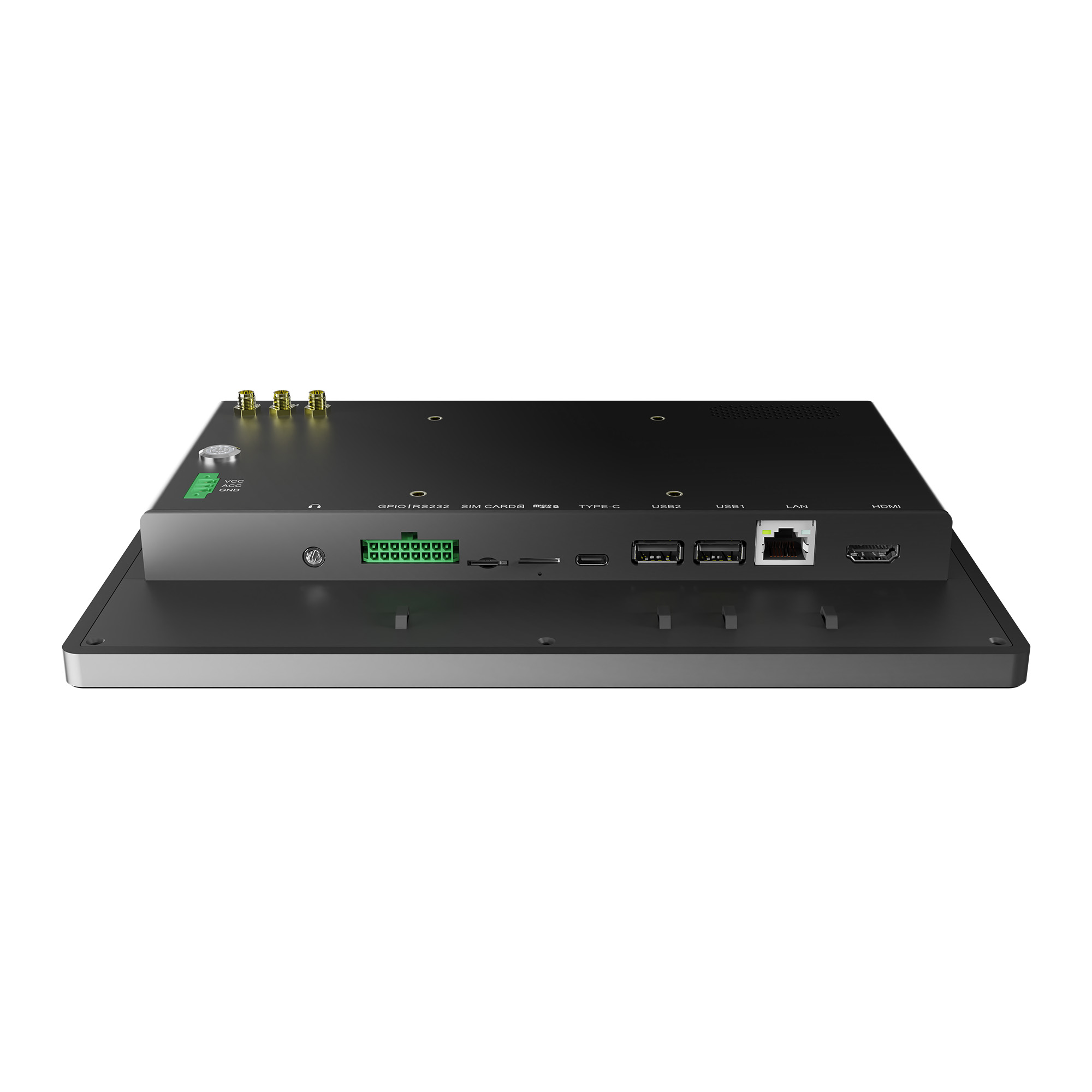

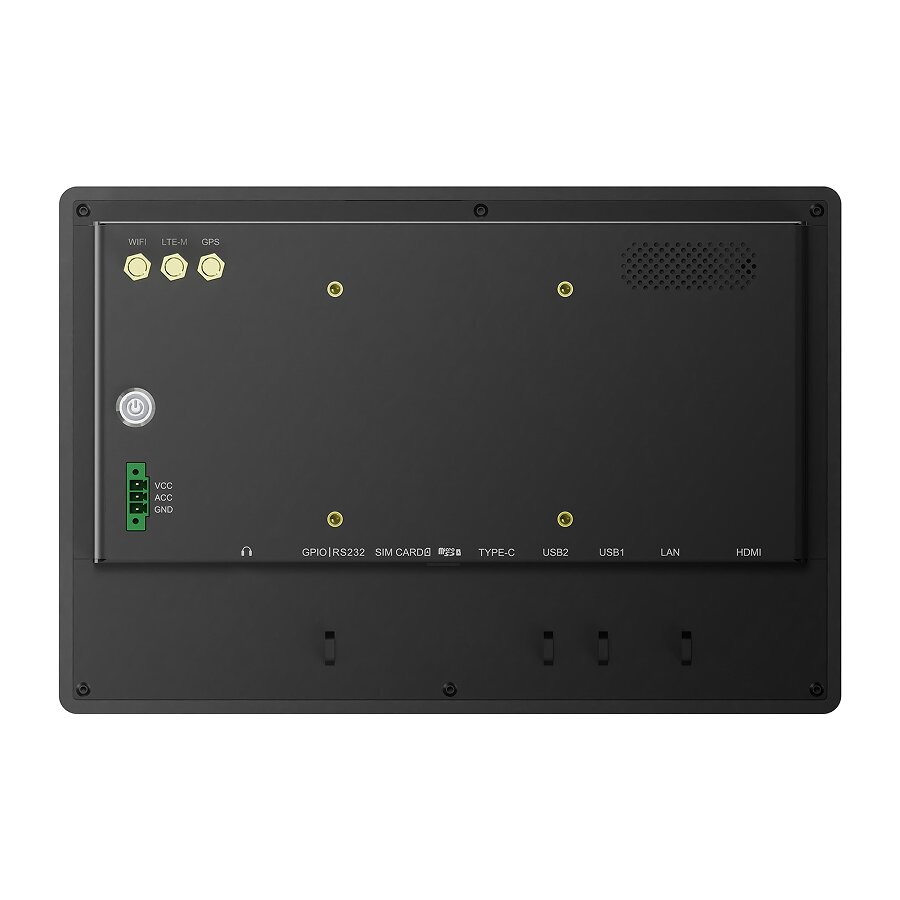

  • Interface: LAN, GPIO, RS232,HDMI, USB,TYPE-C, SIM CARD ....
    • Download as PDF User guide

    Product Detail

    SPECIFICATION

    ACCESSORIES

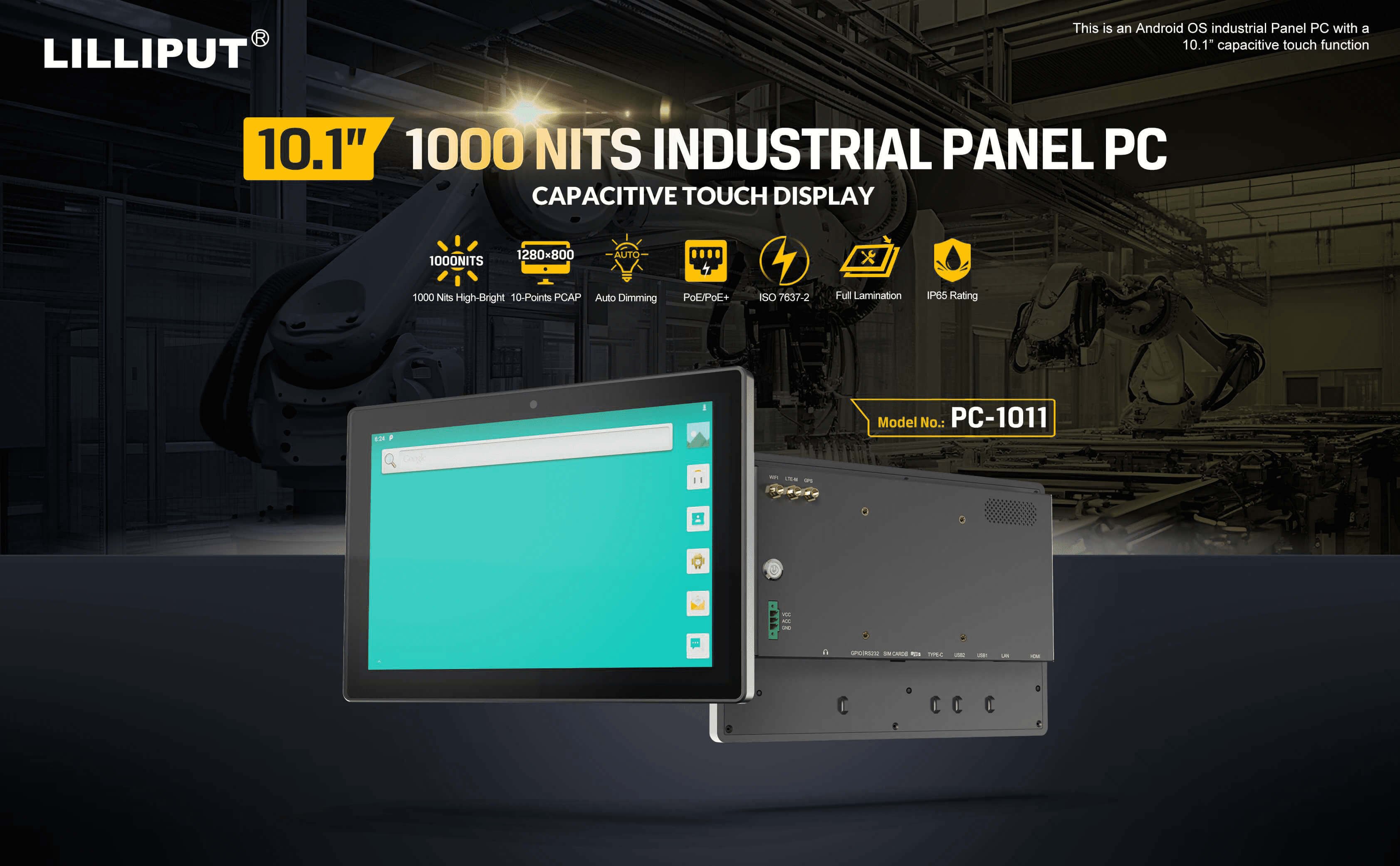

    10.1 inch IP65 Android Industrial Touch Panel PC1

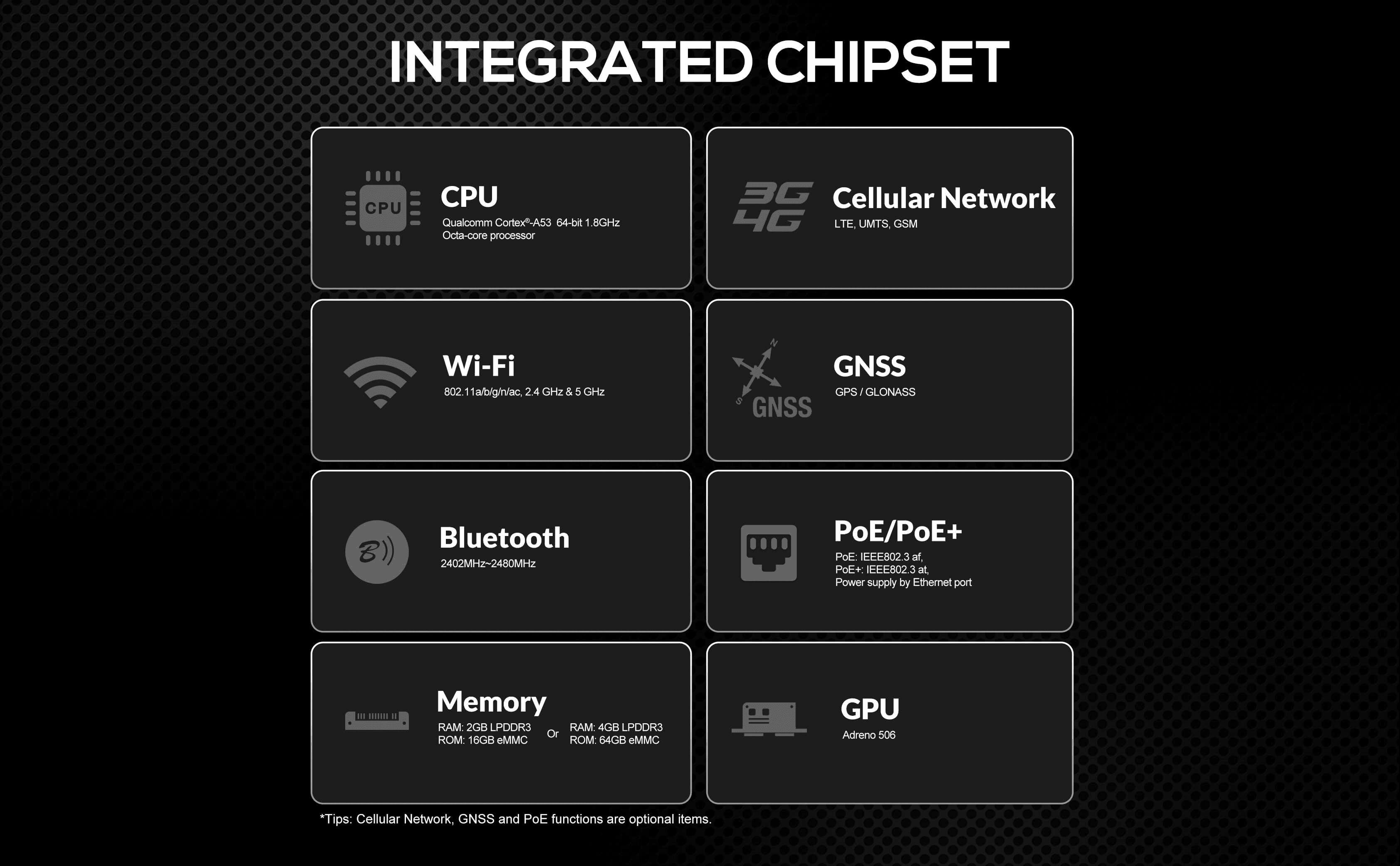

    10.1 inch IP65 Android Industrial Touch Panel PC2
    10.1 inch IP65 Android Industrial Touch Panel PC3
    10.1 inch IP65 Android Industrial Touch Panel PC4
    10.1 inch IP65 Android Industrial Touch Panel PC5
    10.1 inch IP65 Android Industrial Touch Panel PC6
    10.1 inch IP65 Android Industrial Touch Panel PC7
  • Previous:
  • Next:
    • SYSTEM CPU Qualcomm Cortex®-A53 64-bit Octa-core 1.8GHz processor
    OS  Android 9.0
    RAM + ROM  2GB LPDDR3 + 16GB eMMC, 4GB + 64GB are optional
    GPU  Adreno 506
    PANEL Sensors  Light Sensor (Auto Dimming)
    LCD  10.1” IPS, 1280×800, 1000 nit, 170°/170° viewing angle
    Touch Screen  Multi-point capacitive touch screen
    INTERFACE LAN  100M×1 (Optional PoE/PoE+: IEEE802.3 af/at)
    GPIO  ×4 (Input×2, output×2)
    COM  RS232×3
    HDMI  ×1 Output
    SIM  ×1
    Micro SD Card  ×1, support up to 1TB
    USB  USB host×2, USB Type-C OTG×1
    Earphone Jack  3.5mm
    WIRELESS Wi-Fi  802.11a/b/g/n/ac, 2.4GHZ/5GHZ
    Bluetooth  2402MHz~2480MHz
    Cellular Network  Optional 3G/4G (LTE, DC-HSPA+, UMTS, EDGE, GPRS, GSM)
    GNSS  Optional (GPS, GLONASS)
    BUILT-IN Front Camera  Optional, 5.0MP
    Speaker  ×1
    POWER Power Supply  DC 9~36V (ISO7637-2 compliant)
    Power Consumption  ≤12W
    OTHER Dimension  265mm×172mm×32mm
    Weight  1.3kg

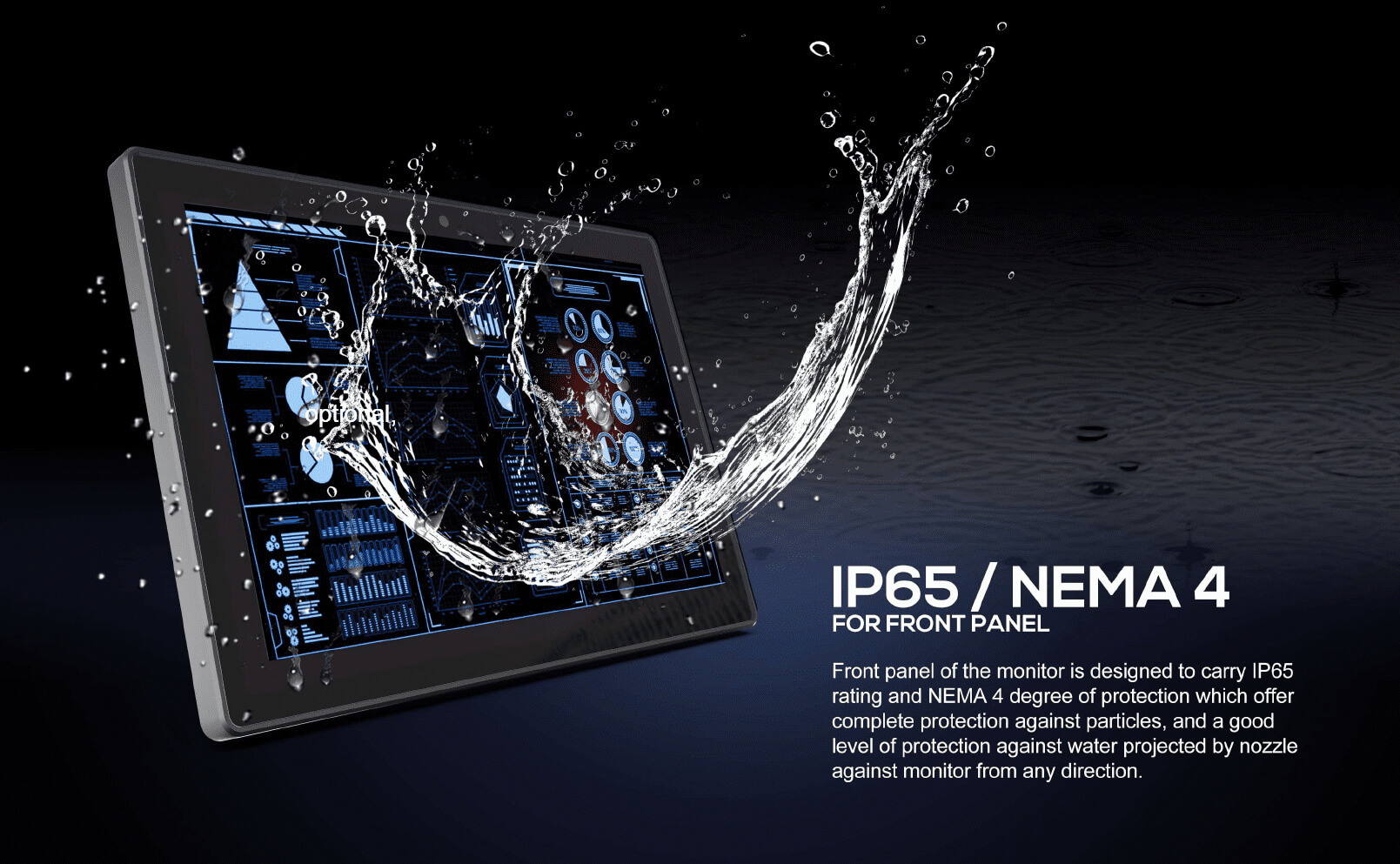

    Protection Rating  Front IP65 (IEC60529), Front NEMA4
    Vibration  1.5Gms, 5~500Hz, 1hr/axis (IEC 60068-2-64)
    Shock  10G, half-sine wave, last 11ms (IEC 60068-2-27)
    Environment  Operating Temp: -10°C~60°C (14°F~140°F)
     Storage Temp: -20°C~65°C (-4°F~149°F)

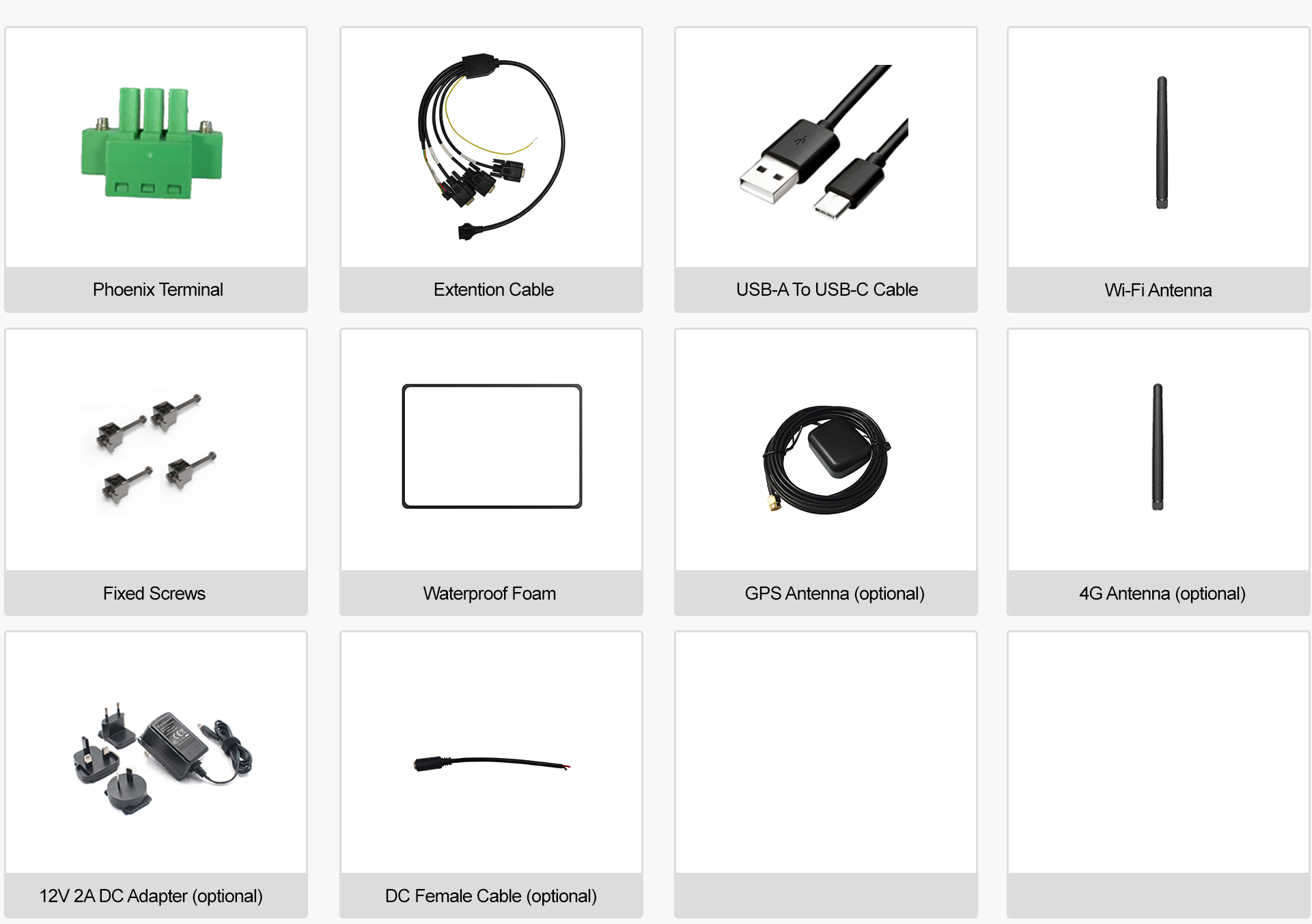

    P配
